Product Summary

The ES1D is a Surface Mount Ultrafast Plastic Rectifier. It is suitable for For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.

Parametrics

ES1D absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 50V; (2)Working Peak Reverse Voltage: 35V; (3)DC Blocking Voltage: 50V; (4)RMS Reverse Voltage:35V; (5)Average Rectified Output Current: 1.0A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method): 30A; (7)Forward Voltage: 0.95V; (8)Typical Junction Capacitance: 10pF; (9)Typical Thermal Resistance: 35K/W; (10)Operating and Storage Temperature Range: -65 to +150℃.

Features

ES1D features: (1)Glass Passivated Die Construction; (2)Ideally Suited for Automatic Assembly; (3)Low Forward Voltage Drop, High Efficiency; (4)Surge Overload Rating to 30A Peak; (5)Low Power Loss; (6)Super-Fast Recovery Time; (7)Plastic Case Material has UL Flammability Classification Rating 94V-O.

Diagrams

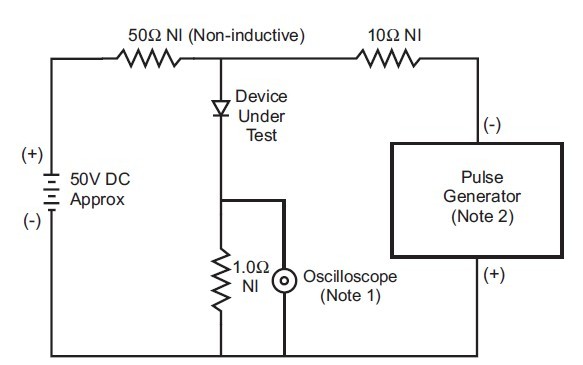

ES1D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ES1D
ES1D
Fairchild Semiconductor
Rectifiers 1.0a Rectifier UF Recovery
Data Sheet
0-1: $0.28
1-25: $0.16
25-100: $0.12
100-250: $0.08
ES1D/1
ES1D/1

DIODE FAST 1A 200V SMA
Data Sheet
0-3600: $0.06
ES1D/11T
ES1D/11T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
0-1: $0.17
1-50: $0.14
50-100: $0.12
100-500: $0.10
ES1D/13T
ES1D/13T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/1T
ES1D/1T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/2FT
ES1D/2FT
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/2GT
ES1D/2GT
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt 30 Amp IFSM
Data Sheet
Negotiable
ES1D/61T
ES1D/61T
Vishay Semiconductors
Rectifiers 1.0 Amp 200 Volt
Data Sheet
Negotiable
