Product Summary

The EFB1212HH is a fan.

Parametrics

EFB1212HH absolute maximum ratings: (1)rated voltage: 12VDC; (2)operating voltage range: 7.0 to 13.8VDC; (3)rated current: 0.30Amp; (4)rated input power: 3.6Watt; (5)speed: 3000RPM; (6)maximum air flow: 2.650m3/min; 95.38CFM; (7)maximum air pressure: 5.75mmH2O; 0.226INH2O; (8)noise: 42.5dB-A.

Features

EFB1212HH features: (1)Bearing Type Two Ball Bearing; (2)Material Impeller & Frame: Plastic (UL 94V-0); (3)Lead Wires: UL 1007 AWG #24 Or Equivalent, Red Wire Positive (+), Black Wire Negative (-); (4)Weight: 184g (6.49 oz).

Diagrams

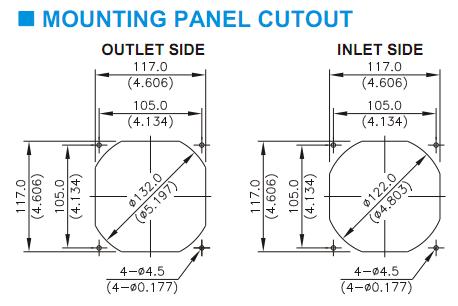

EFB1212HH dimensions

EFB1212VHE
EFB1212VHE


FAN DC AXIAL 12V 120X38 3BLADE

Data Sheet

Negotiable
EFB1224SHE
EFB1224SHE


FAN DC AXIAL 24V 120X38 3BLADE

Data Sheet

0-36: $8.32
EFB1524HHG
EFB1524HHG


FAN 24VDC 172X150X50.8MM

Data Sheet

0-1: $34.76
1-10: $31.80
10-25: $26.62
25-50: $24.40
50-100: $21.45
100-250: $19.97
250-500: $18.49
500-1000: $17.75

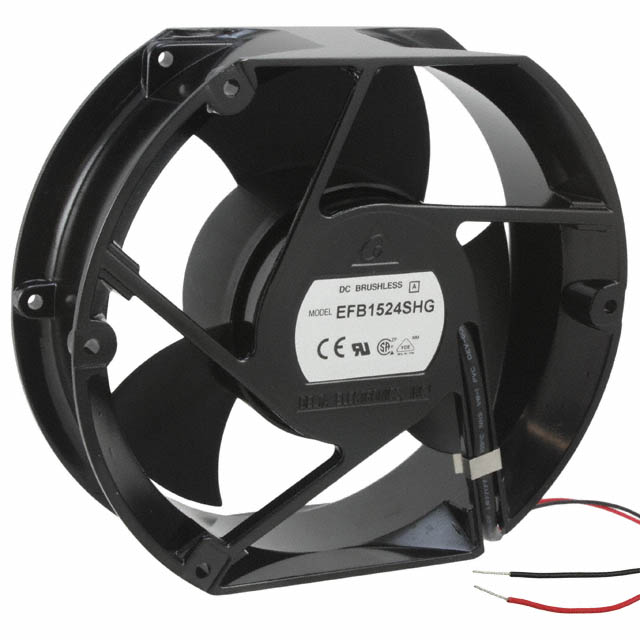

EFB1524SHG
