Product Summary

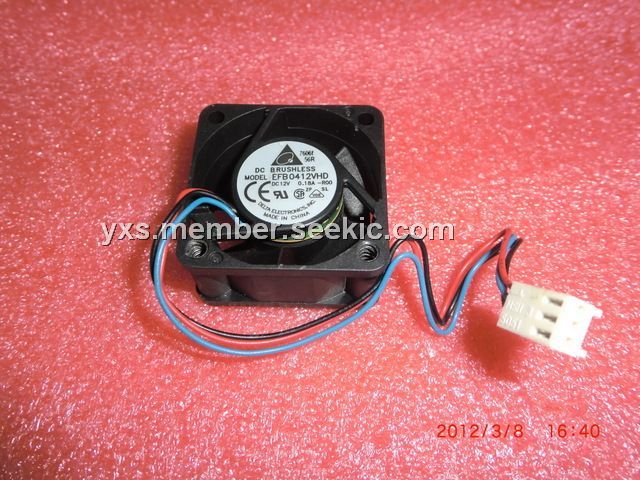

The EFB0412VHD-R00 is a 12VDC fan.
Parametrics
EFB0412VHD-R00 absolute maximum ratings: (1)Voltage - Rated 12VDC; (2)Power (Watts) 1.44W; (3)RPM 9000 RPM; (4)Noise 32.5 dB(A); (5)Static Pressure 0.416 in H2O (103.6 Pa); (6)Air Flow 10.1 CFM (0.286m3/min); (7)Termination 3 Wire Leads; (8)Bearing Type Ball; (9)Operating Temperature: -10 ~ 70℃; (10)Weight 0.073 lb (33.11g); (11)Current Rating 0.120A; (12)Voltage Range 7 ~ 13.8VDC; (13)Life Expectancy 70000 hrs @ 40℃.
Features
EFB0412VHD-R00 features: (1)Bearing Type: Ball Bearings; (2)Material: Impeller & Frame : Plastic (UL 94V-0); (3)Lead Wires: UL 1007 AWG #24 Or Equivalent; Red Wire Positive (+); Black Wire Negative (-); (4)Weight: 33g (1.16 oz); (5)Rib Type Only.

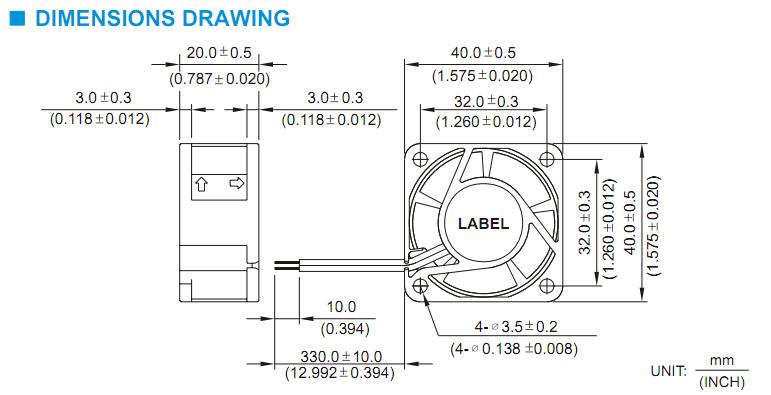

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

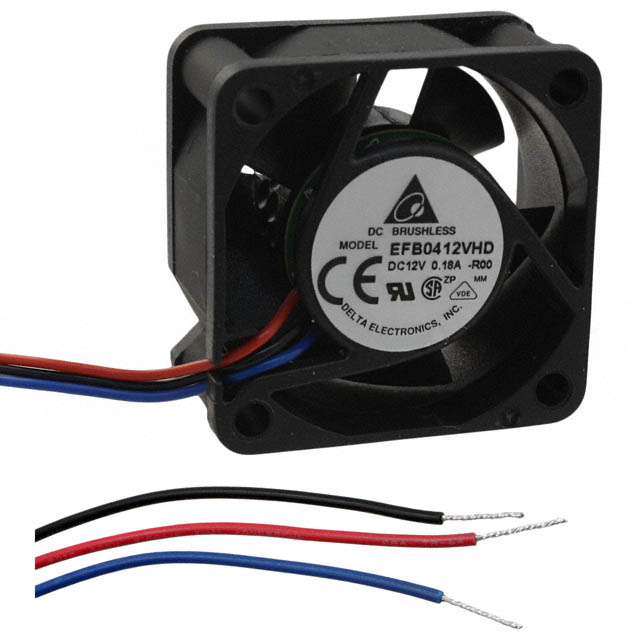

 EFB0412VHD-R00 |
|
12V DC FAN 40X40X20 MM |
Data Sheet |
|
|
||||||||||||||||||||
