DS32KHZ

temperature-compensated crystal oscillator, BGA, 32.768kHz, -3.0V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.30~9.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.30~9.50

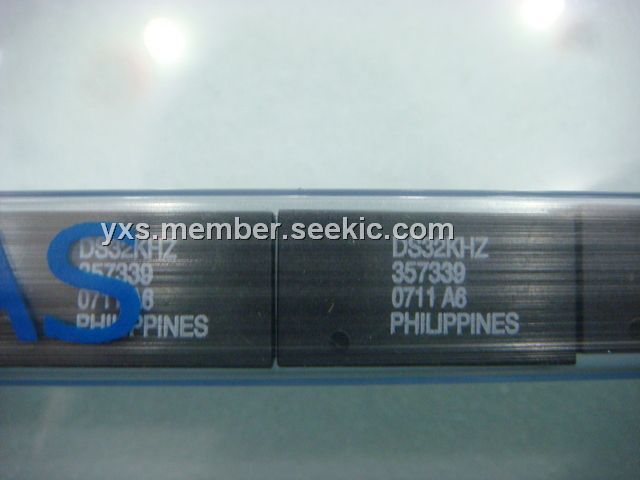

PartNumber:: DS32KHZ

Brand:: Maxim Integrated Products - Maxim | Pack: BGA | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-24

From Other Seller

Part Number:DS32KHZ
US $6.30 - 9.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

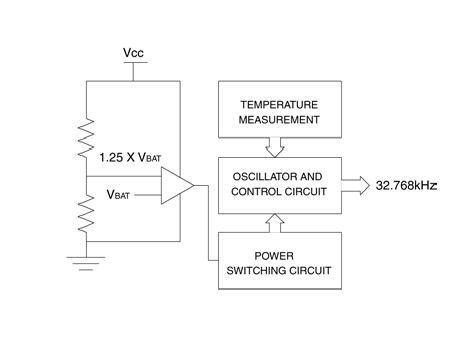

The DS32KHZ is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 32.768kHz. This device DS32KHZ addresses applications requiring better timekeeping accuracy and can be used to drive the X1 input of most Dallas Semiconductor real-time clocks (RTCs), chipsets, and other ICs containing RTCs. This device is available in commercial (DS32kHz) and industrial (DS32kHz-N) temperature versions. The applicaitons of the DS32KHZ include GPS Receivers Telematics, Network Timing and Synchronization in Servers, Routers, Hubs, and Switches and Automatic Power Meters.

Parametrics

DS32KHZ absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -3.0V to +7.0V; (2)Operating Temperature Range: Commercial: 0℃ to +70℃, Industrial: -40℃ to +85℃; (3)Storage Temperature Range: -40 to +85℃; (4)Soldering Temperature (BGA): See IPC/JEDEC J-STD-020A (2x max); (5)Soldering Temperature, Leads (DIP): 260℃ for 10 seconds.

Features

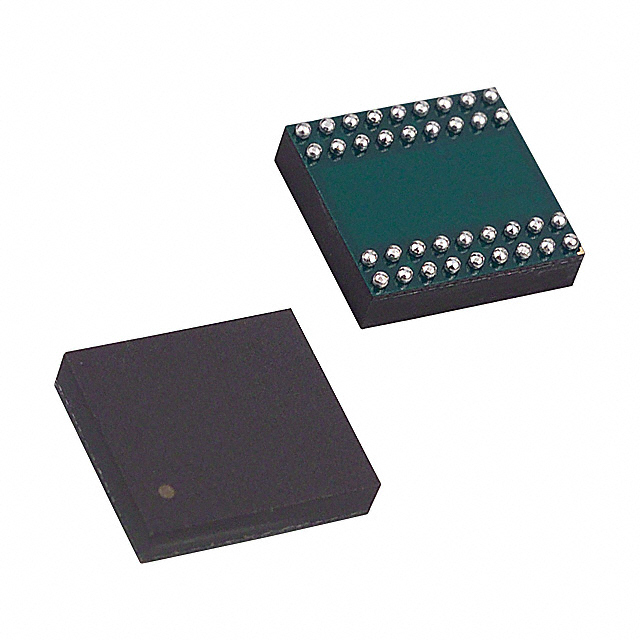

DS32KHZ features: (1)Accurate to ±4 Min/Yr (-40℃ to +85℃); (2)Accurate to ±1 Min/Yr (0℃ to +40℃); (3)Battery Backup for Continuous Timekeeping; (4)VBAT Operating Voltage: 2.7V to 5.5V with VCC Grounded; (5)VCC Operating Voltage: 4.5V to 5.5V; (6)Operating Temperature Range: 0℃ to +70℃ (Commercial); (7)-40℃ to +85℃ (Industrial); (8)No Calibration Required; (9)Low-Power Consumption; (10)Surface Mountable Using BGA Package; (11)UL Recognized.
