Product Summary

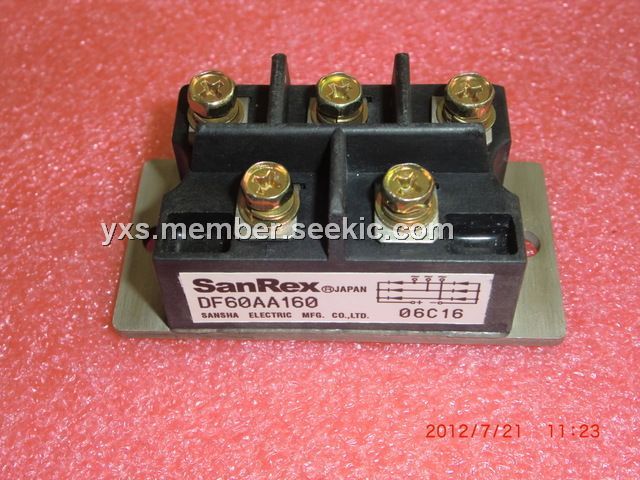

The DF60AA160 is a Power Diode Module. The device is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the DF60AA160 is electrically isolated from semiconductor elements for simple heatsink construction Output DC current is 60Amp (Tc=112℃) Repetitive peak reverse voltage is up to 1,600V. The DF60AA160 is suitable for AC. DC Motor Drive/AVR/Switching and three phase rectification.
Parametrics
DF60AA160 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 1200V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 1300V; (3)ID, output current: 60A; (4)IFSM, Surge Forward Current: 910/1000 A; (5)Tj, Junction Temperature: -40 to 150℃; (6)Tstg, Storage Temperature: -40 to 125℃; (7)VISO, Isolation Breakdown Voltage: 2500 V; (8)mass, typical value: 200g.
Features
DF60AA160 features: (1)TjMax=150℃; (2)Isolated Mounting Base; (3)High reliability by unique glass passivation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DF60AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
