CY7C63723-SC

CY7C63723-SC, 8-bit RISC one-time-programmable microcontroller, SOIC, 4.0V to 5.5VDC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: CY7C63723-SC

Brand:: Cypress Semiconductor - Cypress | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CY7C63723-SC
US $5.00 - 60.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

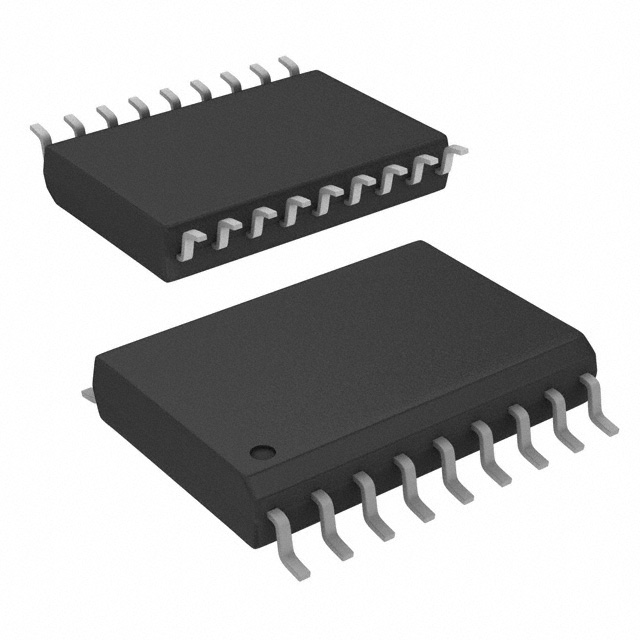

The CY7C63723-SC is an 8-bit RISC one-time-programmable (OTP) microcontroller. The instruction set has been optimized specifically for USB and PS/2 operations, although the microcontrollers can be used for a variety of other embedded applications. The CY7C63723-SC features up to 16 GPIO pins to support USB, PS/2 and other applications. The I/O pins are grouped into two ports (Port 0 to 1) where each pin can be individually configured as inputs with internal pull-ups, open drain outputs, or traditional CMOS outputs with programmable drive strength of up to 50 mA output drive.

Parametrics

CY7C63723-SC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –0℃ to +70℃; (3)Supply Voltage on VCC Relative to VSS: –0.5V to +7.0V; (4)DC Input Voltage: –0.5V to +VCC+0.5V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to + VCC+0.5V; (6)Power Dissipation: 300 mW; (7)Static Discharge Voltage: >2000V; (8)Latch-up Current: >200 mA.

Features

CY7C63723-SC features: (1)Optional 6-MHz internal oscillator mode; (2)Watchdog Reset (WDR); (3)Low-voltage Reset at 3.75V; (4)Internal brown-out reset for suspend mode; (5)Improved output drivers to reduce EMI; (6)Operating voltage from 4.0V to 5.5VDC; (7)Operating temperature from 0℃ to 70℃; (8)CY7C63743C available in 24-pin SOIC, 24-pin PDIP, 24-pin QSOP; (9)Industry standard programmer support.
