Product Summary
The CY7C344B-15JC is a 32-Macrocell MAX EPLD. The speed and density of the CY7C344B-15JC makes it a natural for all types of applications. With just this one device, the designer can implement complex state machines, registered logic, and combinatorial “glue” logic, without using multiple chips.
Parametrics
CY7C344B-15JC absolute maximum ratings: (1)Storage Temperature:–65 to +150℃; (2)Ambient Temperature with Power Applied:0 to +70℃; (3)Maximum Junction Temperature (Under Bias):150℃; (4)Supply Voltage to Ground Potential:–2.0V to +7.0V; (5)Maximum Power Dissipation:1500 mW; (6)DC VCC or GND Current:500 mA; (7)DC Output Current, per Pin:–25 mA to +25 mA; (8)DC Input Voltage:–3.0V to +7.0V; (9)DC Program Voltage:+13.0V.
Features
CY7C344B-15JC features: (1)High-performance, high-density replacement for TTL, 74HC, and custom logic; (2)32 macrocells, 64 expander product terms in one LAB; (3)8 dedicated inputs, 16 I/O pins; (4)0.8-micron double-metal CMOS EPROM technology ; (5)28-pin, 300-mil DIP, cerDIP or 28-pin HLCC, PLCC package.

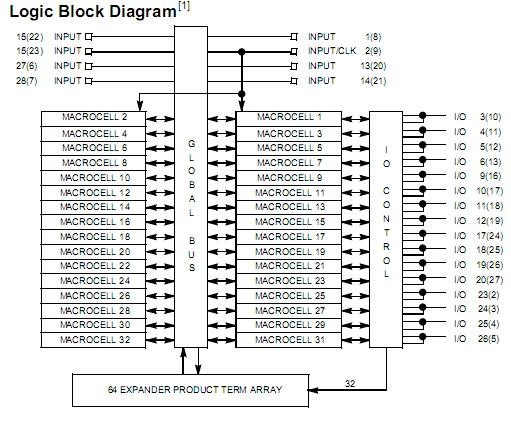

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C344B-15JC |
|
IC EPLD 32MACROCELL 15NS 28-PLCC |
Data Sheet |
Negotiable |
|
||||||||||||
