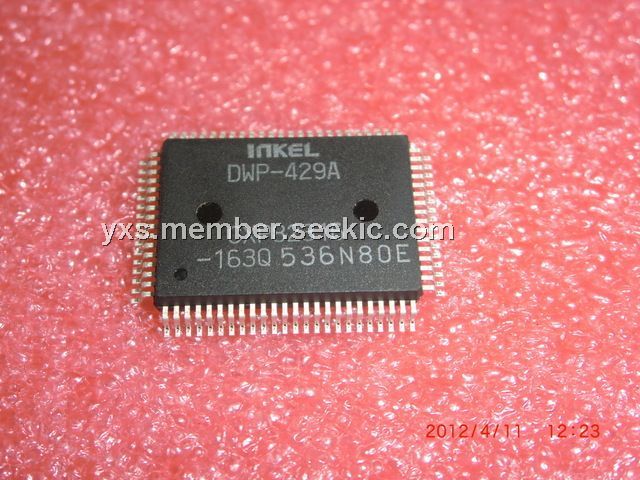

CXP82316-163Q

Product Summary

The CXP82316-163Q is a microcomputer composed of a CPU, ROM and RAM, and I/O ports. The CXP82316-163Q features many other high-performance circuits in a single-chip CMOS design, including an A/D converter, serial interface, timer/counter, time-base timer, capture timer/counter, fluorescent display controller/driver, remote control receiver. This device CXP82316-163Q also includes a power-on reset function and sleep/stop functions which can be used to achieve low power consumption.

Parametrics

CXP82316-163Q absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 7.0V; (2)Input voltage, VIN: -0.3 to 7.0V; (3)Output voltage, VOUT: -0.3 to 7.0V; (4)Display output voltage, VOD: VDD-40 to VDD+0.3V; (5)High level output current, IOH: -5mA; (6)Low level output current, IOL: 15mA; (7)Operating temperature, Topr: -20 to 75℃; (8)Storage temperature, Tstg: -55 to 150℃; (9)Allowable power dissipation, PD: 600mW.

Features

CXP82316-163Q features: (1)Instruction set which supports a wide array of data types: 213 types of instructions which include 16-bit calculations, multiplication and division arithmetic, and boolean bit operations; (2)Minimum instruction cycle 400ns for 10MHz operation; (3)On-chip ROM 16K bytes; (4)On-chip RAM 704 bytes (Including fluorescent display data area); (5)A/D converter 8-bit, 8-channel, successive approximation system (conversion rate 32μs/10MHz); (6)Serial interface On-chip 8-bit, 8-stage FIFO (1 to 8 bytes auto transfer) 1 channel 8-bit clock synchronized 1 channel; (7)Timers 8-bit timer; (8)Fluorescent display controller/driver Maximum of 336 segment display available 1 to 16 digits dynamic display Dimmer function High voltage tolerant output (40V) On-chip pull-down resistor (Mask option) ; (9)Remote control receiver circuit On-chip noise elimination circuit On-chip 6 stage FIFO 8-bit pulse measurement counter; (10)Interrupts 14 factors, 15 vectors multi-interruption possible; (11)Standby mode Sleep/stop; (12)Package 80-pin plastic QFP; (13)Piggyback/evaluator CXP82300 80-pin ceramic QFP.

Diagrams
