Product Summary
The CRM2512-FX-R220ELF is a thickfilm power resistor with a rating of 2 watts in a standard 2512 chip format. This product has a very wide resistance range making it suitable for different applications in power supply circuits including current sensing and inrush current limiting.
Parametrics
CRM2512-FX-R220ELF absolute maximum ratings: (1)Power Rating @ 70℃: 2 W; (2)Operating Temperature Range: -55 to +155℃; (3)Derated to Zero Load at: +155℃; (4)Maximum Working Voltage: 3017 mV; (5)Insulation Resistance > 1000 megohms; (6)Resistance Range: 0.047 - 0.91 ohm; (7)Resistance Tolerance: ±1 %, ±5 %.
Features
CRM2512-FX-R220ELF features: (1)Thick film technology; (2)Power rating of 2 watts at 70℃; (3)RoHS compliant.

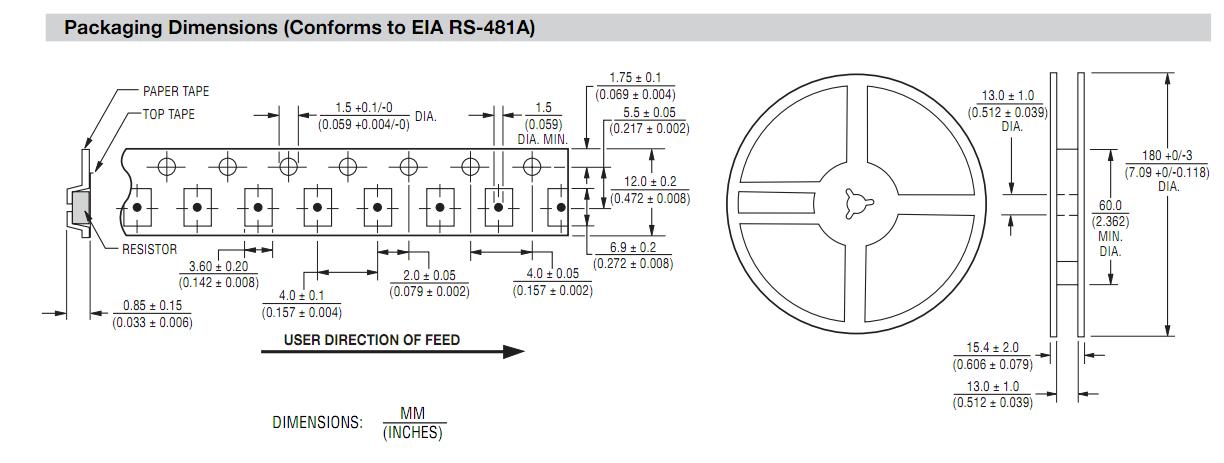

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

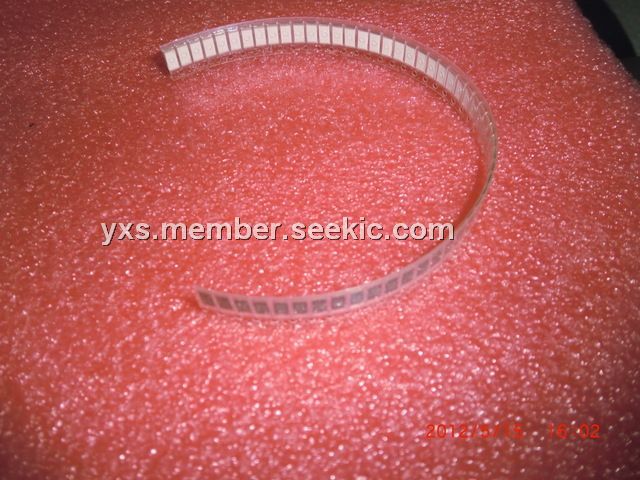

CRM2512-FX-R220ELF |
Bourns |
Current Sense Resistors - SMD CHIP RESISTOR - Low Value |
Data Sheet |
Negotiable |
|
|||||||||||||
