Product Summary

The COP8SGR744V8/NOPB is a ROM and OTP based microcontroller. It is a highly integrated COP8 Feature core device with 8k to 32k memory and advanced features including Analog comparators, and zero external components. The COP8SGR744V8/NOPB is suited for more complex applications requiring a full featured controller with larger memory, low EMI, two comparators, and a full-duplex USART. The COP8SGR744V8/NOPB is 100% form-fit-function compatible OTP (One Time Programmable) versions for use in production or development of the COP8SGx5 ROM.

Parametrics

COP8SGR744V8/NOPB absolute maximum ratings: (1)Supply Voltage(VCC): 7V; (2)Voltage at Any Pin: -0.3V to VCC +0.3V; (3)Total Current into VCC Pin (Source): 100 mA; (4)Total Current out of GND Pin (Sink): 110 mA; (5)Storage Temperature Range: -65 to +140℃; (6)ESD Protection Level: 2kV (Human Body Model).

Features

COP8SGR744V8/NOPB features: (1)Low cost 8-bit microcontroller; (2)Quiet Design (low radiated emissions); (3)Multi-Input Wakeup pins with optional interrupts (8 pins); (4)Mask selectable clock options; (5)Internal Power-On-Reset—user selectable; (6)WATCHDOG and Clock Monitor Logic—user selectable; (7)Eight high current outputs; (8)256 or 512 bytes on-board RAM; (9)8k to 32k ROM or OTP EPROM with security feature.

Diagrams

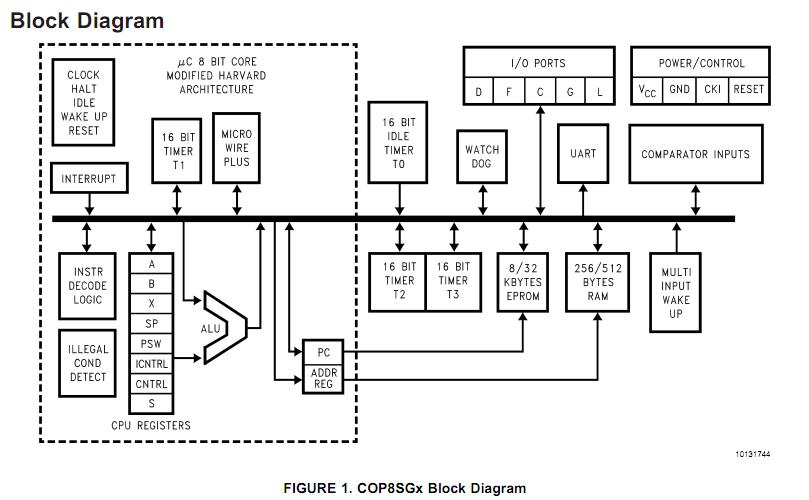

COP8SGR744V8/NOPB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
COP8SGR744V8/NOPB
COP8SGR744V8/NOPB
National Semiconductor (TI)
8-bit Microcontrollers (MCU)
Data Sheet
0-1: $7.65
1-25: $6.43
25-100: $5.92
100-250: $5.39
