Product Summary

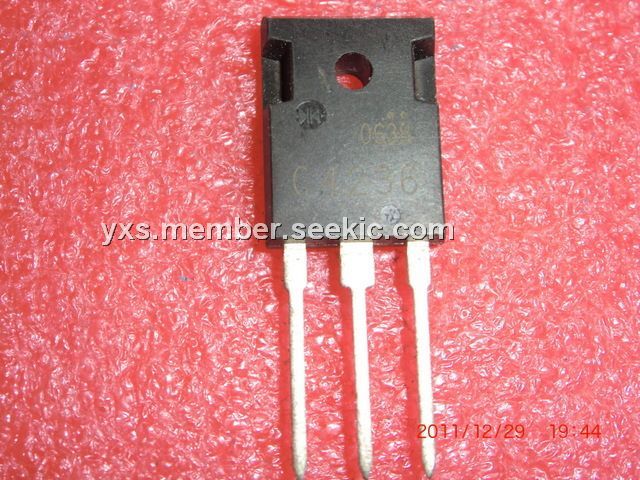

The C4236 is a Switching Power Transistor.

Parametrics

C4236 absolute maximum ratings: (1)Storage Temperature Tstg: -55～150 ℃; (2)Junction Temperature Tj: 150 ℃; (3)Collector to Base Voltage VCBO: 1200 V; (4)Collector to Emitter Voltage VCEO: 800 V; (5)Emitter to Base Voltage VEBO: 7V; (6)Collector Current DC IC: 6A; (7)Collector Current Peak ICP: 12A; (8)Base Current DC IB: 3 A; (9)Base Current Peak IBP: 6A; (10)Total Transistor Dissipation PT Tc = 25℃: 100 W.

Features

C4236 features: (1)Collector to Emitter Sustaining Voltage, VCEO(sus): 800 V; (2)Collector Cutoff Current ICBO: 0.1 mA; (3)Emitter Cutoff Current IEBO: 0.1 mA.

Diagrams

C4236 outline dimensions
