Product Summary
The BCR8PM is a solid state siliconAC switch which may be gatetriggered from an off-state to anon-state for either polarity ofapplied voltage.
Parametrics
BCR8PM absolute maximum ratings: (1)Repetitive Peak Off-state Voltage: 400V; (2)Non-repetitive Peak Off-state Voltage:500V; (3)On-state Current, Tc = 88℃:8A; (4)Non-repetitive Peak Surge, One Cycle (60 Hz):80A; (5)I2t for Fusing, t = 8.3 msec:26A2sec; (6)Peak Gate Power Dissipation, 20sec:5W; (7)Average Gate Power Dissipation: 0.5W; (8)Peak Gate Current: 2A; (9)Peak Gate Voltage:10V; (10)Storage Temperature:-40℃ to 125℃; (11)Operating Temperature:-40℃ to 125℃; (12)Isolation Voltage:1500V; (13)Weight:2g.
Features
BCR8PM features: (1)Full Molded Isolation Package; (2)Glass Passivation; (3)Selected for Inductive Loads; (4)UL Approved.

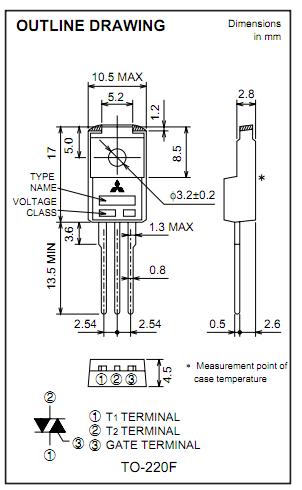

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BCR8PM |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BCR8PM-12LG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BCR8PM-14 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BCR8PM-18 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BCR8PM-20 |
Other |
|
Data Sheet |
Negotiable |
|
||||
