Product Summary
The BCR16PM-12L is a Medium Power Use. Applications are Contactless AC switch, light dimmer, electronic flasher unit, hair drier, control of household equipment such as TV sets, refrigerator, washing machine, electric fan, and other general controlling devices.
Parametrics
BCR16PM-12L absolute maximum ratings: (1)Repetitive peak off-state voltage, VDRM: 600 V; (2)Non-repetitive peak off-state voltage, VDSM: 720 V; (3)RMS on-state current, IT (RMS): 16 A; (4)Surge on-state current, ITSM: 160 A; (5)I2t for fusing, I2t: 106.5 A2s; (6)Peak gate power dissipation, PGM: 5.0 W; (7)Average gate power dissipation, PG (AV): 0.5 W; (8)Peak gate voltage, VGM: 10 V; (9)Peak gate current, IGM: 2 A; (10)Junction temperature, Tj: – 40 to +125℃; (11)Storage temperature, Tstg: – 40 to +125℃; (12)Isolation voltage, Viso: 1500 V.
Features
BCR16PM-12L features: (1)IT (RMS) : 16 A; (2)VDRM : 600 V; (3)IFGTI, IRGTI, IRGT& : 30 mA (20 mA); (4)Viso : 1500 V; (5)Insulated Type; (6)Planar Passivation Type; (7)UL Recognized : Yellow Card No. E223904; File No. E80271.

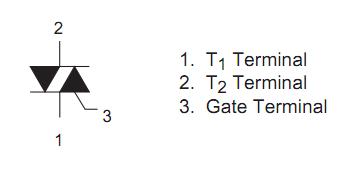

Diagrams
![]() |
