AT27BV1024-15JC

1,048,576 bit, programmable read only memory, PLCC, -2.0V to +14.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: AT27BV1024-15JC

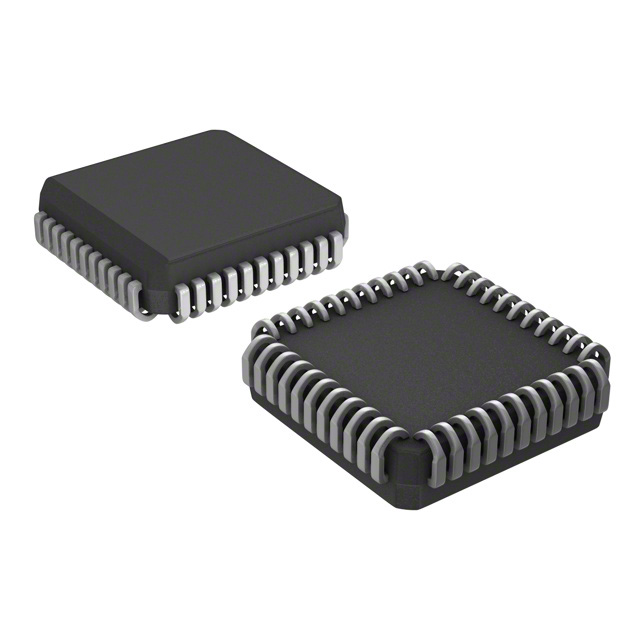

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:AT27BV1024-15JC
US $5.00 - 60.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

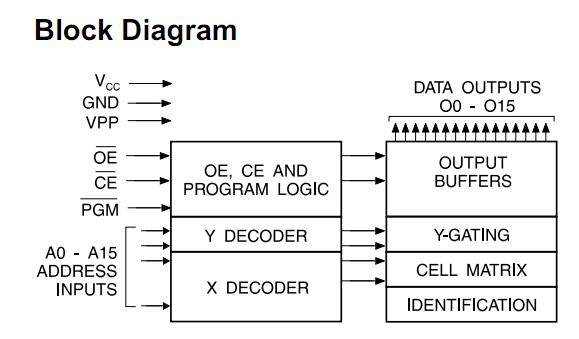

The AT27BV1024-15JC is a high performance, low power, low voltage 1,048,576 bit one-time programmable read only memory (OTP EPROM) organized as 64K by 16 bits. It requires only one supply in the range of 2.7V to 3.6V in normal read mode operation. The by-16 organization makes this part AT27BV1024-15JC ideal for portable and handheld 16 and 32 bit microprocessor based systems using either regulated or unregulated battery power.

Parametrics

AT27BV1024-15JC absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on A9 with Respect to Ground: -2.0V to +14.0V; (5)VPP Supply Voltage with Respect to Ground: -2.0V to +14.0V.

Features

AT27BV1024-15JC features: (1)Fast Read Access Time - 90 ns; (2)Dual Voltage Range Operation Unregulated Battery Power Supply Range, 2.7V to 3.6V or Standard 5V ± 10% Supply Range; (3)Pin Compatible with JEDEC Standard AT27C1024; (4)Low Power CMOS Operation 20 μA max. (less than 1 μA typical) Standby for VCC = 3.6V 29 mW max. Active at 5 MHz for VCC = 3.6V; (5)JEDEC Standard Surface Mount Packages 44-Lead PLCC 40-Lead TSOP; (6)High Reliability CMOS Technology 2,000V ESD Protection 200 mA Latchup Immunity; (7)Rapid Programming Algorithm - 100 μs/word (typical); (8)CMOS and TTL Compatible Inputs and Outputs JEDEC Standard for LVTTL and LVBO; (9)Integrated Product Identification Code; (10)Commercial and Industrial Temperature Ranges.
