AK4384ET

DAC, -0.3 to 6.0 V, ±10 mA, AK4384ET, Asahi Kasei Microsystems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.90~2.80

PartNumber:: AK4384ET

Brand:: Asahi Kasei Microsystems - AKM | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:AK4384ET
US $1.90 - 2.80
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

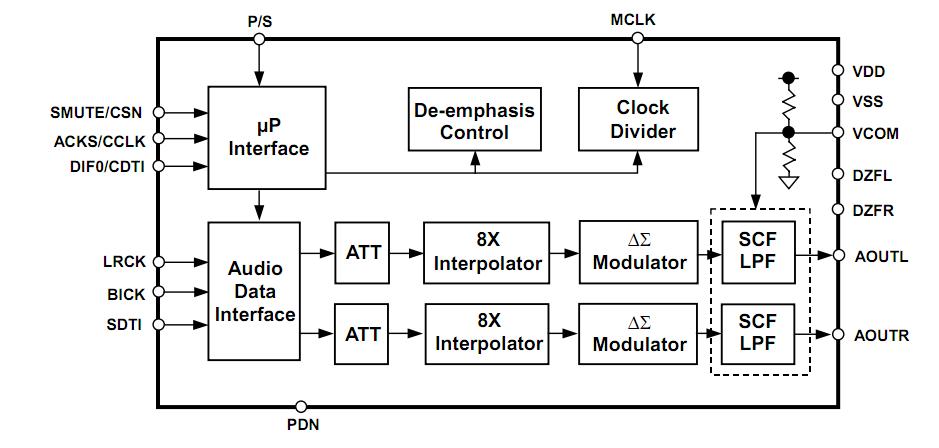

The AK4384ET is a DAC. The AK4384ET offers the perfect mix for cost and performance based audio systems. Using AKM’s multi bit architecture for its modulator the AK4384ET delivers a wide dynamic range while preserving linearity for improved THD+N performance. The AK4384ET integrates a combination of SCF and CTF filters increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of applications including DVD-Audio. The AK4384ET is offered in a space saving 16pin TSSOP package.

Parametrics

AK4384ET absolute maximum ratings: (1)Power Supply VDD: -0.3 to 6.0 V; (2)Input Current (any pins except for supplies) IIN: ±10 mA; (3)Input Voltage VIND: -0.3 to VDD+0.3 V; (4)Ambient Operating Temperature (Powered applied) Ta; -40 to 85℃ ; (5)Storage Temperature Tstg: -65 to 150℃.

Features

AK4384ET features: (1)Sampling Rate Ranging from 8kHz to 192kHz; (2)128 times Oversampling (Normal Speed Mode); (3)64 times Oversampling (Double Speed Mode); (4)32 times Oversampling (Quad Speed Mode); (5)24-Bit 8 times FIR Digital Filter; (6)SCF with High Tolerance to Clock Jitter; (7)2nd order Analog LPF; (8)Single Ended Output Buffer; (9)Digital de-emphasis for 32k, 44.1k and 48kHz sampling; (10)Soft mute; (11)Digital Attenuator (Linear 256 steps); (12)I/F format: 24-Bit MSB justified, 24/20/16-Bit LSB justified or I2S Master clock: 256fs, 384fs, 512fs, 768fs or 1152fs (Normal Speed Mode) 128fs, 192fs, 256fs or 384fs (Double Speed Mode) 128fs, 192fs (Quad Speed Mode); (13)THD+N: -94dB; (14)Dynamic Range: 106dB; (15)Power supply: 4.5 to 5.5V; (16)Very Small Package: 16pin TSSOP (6.4mm × 5.0mm).
