Product Summary

The AG503-86G is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG503-86 typically provides 20 dB gain, +29 dBm OIP3, and +16 dBm P1dB. The AG503-86G combines dependable performance with consistent quality to maintain MTTF values exceeding 100 years at mounting temperatures of +85℃ & is housed in a SOT-86 (micro-X) industry-standard SMT lead-free/green/RoHS-compliant package. The applications of the AG503-86G are (1)Mobile Infrastructure; (2)CATV/ DBS; (3)W-LAN/ ISM; (4)RFID; (5)Defense/ Homeland Security; (6)Fixed Wireless.

Parametrics

AG503-86G absolute maximum ratings: (1)Operating Case Temperature: -40 to +85℃; (2)Storage Temperature: -55 to +125℃; (3)DC Voltage: +5.8 V; (4)RF Input Power (continuous): +10 dBm; (5)Junction Temperature: +250℃.

Features

AG503-86G features: (1)DC – 6000 MHz; (2)+16 dBm P1dB at 900 MHz; (3)+29 dBm OIP3 at 900 MHz; (4)20 dB Gain at 900 MHz; (5)Single Voltage Supply; (6)Green SOT-86 SMT Package; (7)Internally matched to 50Ω.

Diagrams

AG503-86G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

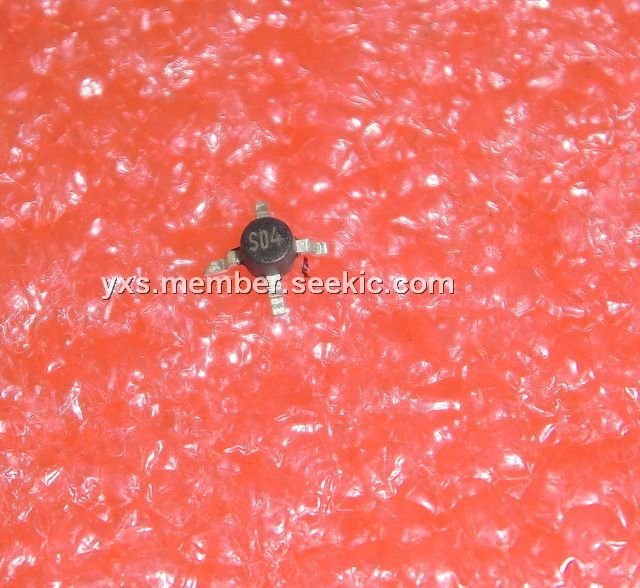

AG503-86G
AG503-86G

TriQuint Semiconductor

RF Amplifier DC-6000MHz 20dB Gain@900MHz

Data Sheet

0-2170: $0.73
2170-2500: $0.70
2500-3000: $0.70
3000-5000: $0.66
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AG503-86G
AG503-86G

TriQuint Semiconductor

RF Amplifier DC-6000MHz 20dB Gain@900MHz

Data Sheet

0-2170: $0.73
2170-2500: $0.70
2500-3000: $0.70
3000-5000: $0.66
AG503-89G
AG503-89G

TriQuint Semiconductor

RF Amplifier DC-4000MHz 21.5dB Gain@900MHz

Data Sheet

0-1: $0.93
1-25: $0.71
25-100: $0.53
100-250: $0.51

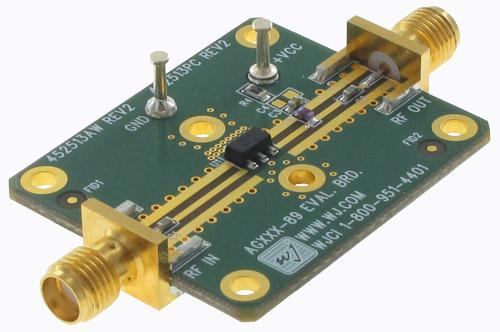

AG503-89PCB
AG503-89PCB

TriQuint Semiconductor

RF Development Tools 700-2400MHz Eval Brd 16dBm 21dB Gain

Data Sheet

0-1: $40.00
AG503-89
AG503-89

Other


Data Sheet

Negotiable
AG503-86PCB
AG503-86PCB

TriQuint Semiconductor

RF Development Tools 700-2400MHz Eval Brd 16dBm 21dB Gain

Data Sheet

0-1: $40.00
