Product Summary
The AD9501JP is a digitally programmable delay generator that provides programmed time delays of an input pulse. Operating from a single 5 V supply, the AD9501JP is TTL- or CMOS-compatible and capable of providing accurate timing adjustments with resolutions as low as 10 ps. Its accuracy and programmability make it ideal for use in data deskewing and pulse delay applications, as well as clock timing adjustments. The applications of the AD9501JP are disk drive deskewing, data communications, test equipment and readar I and Q matching.
Parametrics
AD9501JP absolute maximum ratings: (1)Positive Supply Voltage: 7 V; (2)Digital Input Voltage Range: –0.5 V to +VS; (3)Trigger/Reset Input Voltage Range: –0.5 V to +VS; (4)Minimum RSET: 30 W; (5)Digital Output Current (Sourcing): 10 mA; (6)Digital Output Current (Sinking): 50 mA; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage Temperature Range: –65℃ to +150℃; (9)Junction Temperature: 175℃; (10)Lead Soldering Temperature (10 sec): 300℃.
Features
AD9501JP features: (1)Single 5 V Supply; (2)TTL- and CMOS-Compatible; (3)10 ps Delay Resolution; (4)2.5 ns to 10 s Full-Scale Range; (5)Maximum Trigger Rate 50 MHz.

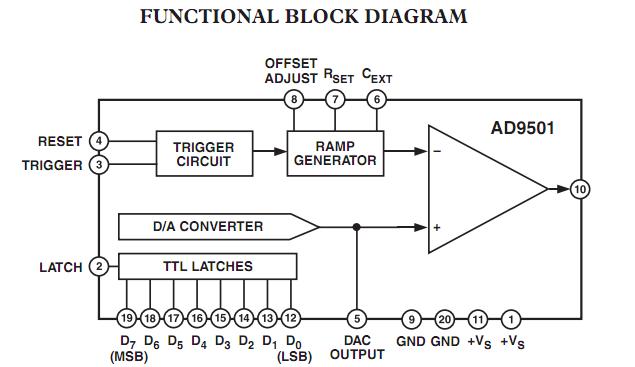

Diagrams
 |
