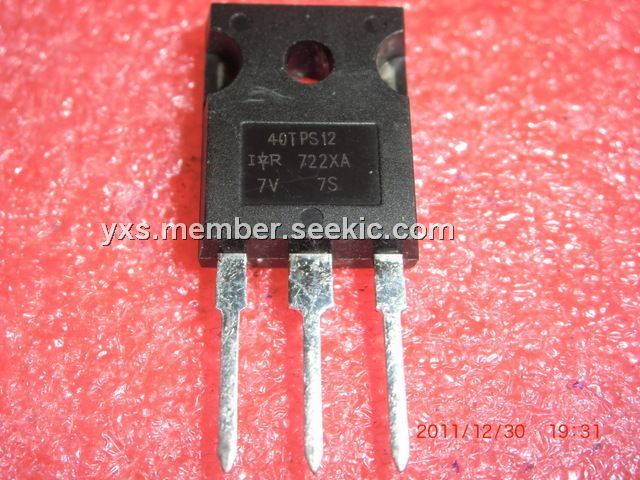

40TPS12

silicon controlled rectifier, TO-247, 35A, 1.02V, 9.74mΩ, 40TPS12

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: 40TPS12

Brand:: International Rectifier - IR | Pack: TO | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-16

From Other Seller

Part Number:40TPS12
US $1.00 - 5.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 40TPS12 is a silicon controlled rectifier specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125℃ junction temperature. Low Igt parts available. Typical applications of the 40TPS12 are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identical package outlines.

Parametrics

40TPS12 absolute maximum ratings: (1)Max. Average On-state Current,IT(AV): 35A; (2)Max. Continuous RMS On-state Current As AC switch, IT(RMS): 55A; (3)Max. Peak One Cycle Non-Repetitive, 10ms Sine pulse, rated VRRM applied, ITSM: 500A; (4)Surge Current, 10ms Sine pulse, no voltage reapplied, ITSM: 600A; (5)Max. I2t for Fusing, 10ms Sine pulse, rated VRRM applied, I2t: 1250A2s; (6)Max. I2t for Fusing, 10ms Sine pulse, no voltage reapplied, I2t: 1760A2s; (7)Max. I2t for Fusing, t = 0.1 to 10ms, no voltage reapplied, I2t: 12500A2s; (8)Low Level Value of Threshold Voltage, : 1.02V; (9)High Level Value of Threshold Voltage, VT(TO): 1.23V; (10)Low Level Value of On-state Slope Resistance, rt1: 9.74mΩ; (11)High Level Value of On-state Slope Resistance, rt2: 7.50mΩ; (12)Max. Peak On-state Voltage, VTM: 1.85V.

Features

40TPS12 features:(1)silicon controlled rectifiers; (2)specifically designed for medium power switching; (3)application in phase control applications; (4)adopts glass passivation technology; (5)reliable operation up to 125℃ junction temperature; (6)Low Igt parts available.
