Product Summary

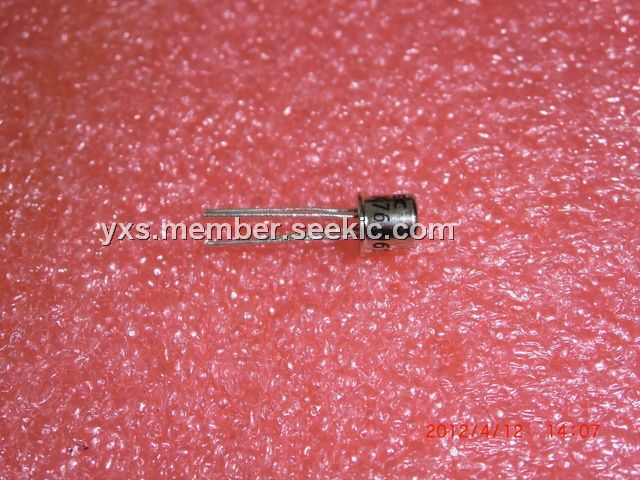

The 3SK76 is an N-channel MOSFET. It is suitable for MOSFET and dual gate.

Parametrics

3SK76 absolute maximum ratings: (1)V(BR)GSS (V): 6.0; (2)I(D) Max. (A): 30m; (3)Absolute Max. Power Diss. (W): 210m; (4)Maximum Operating Temp (℃): 120; (5)I(GSS) Max. (A): 100n; (6)g(fs) Min. (S) Trans. conduct: 14m; (7)g(fs) Max; (S) Trans. conduct: 18m; (8)@V(DS) (V) (Test Condition): 6.0; (9)@I(D) (A) (Test Condition): 10m; (10)C(iss) Max. (F): 4.5p; (11)Package Style: TO-72; (12)Mounting Style: T.

Features

3SK76 features: (1)Type of 3SK76 transistor: MOSFET; (2)Type of control channel: N-channel; (3)Maximum power dissipation (Pd): 210mW; (4)Maximum drain-source voltage (Uds): 14V; (5)Maximum gate-source voltage (Ugs): 6V; (6)Maximum drain current (Id): 30mA; (7)Maximum junction temperature (Tj): 125℃; (8)Drain-source Capacitance (Cd), pf: 4.5pF; (9)Manufacturer of 3SK76 transistor: N/A; (10)Package: TO-72; (11)Application: MOSFET, Dual gate.
