Product Summary

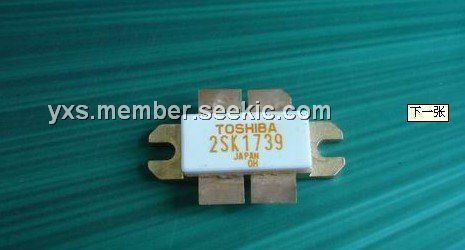

The 2SK1739 is a Toshiba RF power MOS FET for UHF TV broadcast transmitter.

Parametrics

2SK1739 absolute maximum ratings: (1)Drain-Source Voltage VDSS: 80 V; (2)Gate-Source Voltage VGSS: ±20 V; (3)Drain Current ID: 11 A; (4)Reverse Drain Current IDR: 11 A; (5)Drain Power Dissipation PD: 250 W; (6)Channel Temperature Tch: 150 ℃; (7)Storage Temperature Range Tstg: -55 to 150 ℃.

Features

2SK1739 features: (1)Output Power: Po ≥ 90 W (Min.); (2)Drain Efficiency: ηD = 50% (Typ.); (3)Frequency : f = 770 MHz; (4)Push-Pull Structure Package.

Diagrams

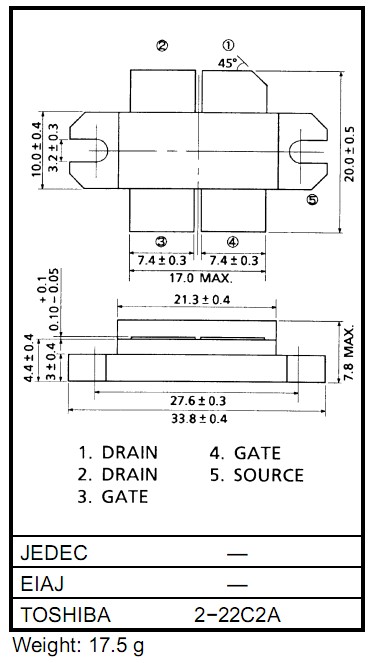

2SK1739 dimensions
