Product Summary
The 2SC3074 is a silicon NPN epitaxial type transistor. It is suitable for high current switching applications.
Parametrics
2SC3074 absolute maximum ratings: (1)collector-base voltage, VCBO: 60V; (2)collector-emitter voltage, VCEO: 50V; (3)emitter-base votlage, VEBO: 5V; (4)collector current, IC: 5A; (5)base current, IB: 1A; (6)collector power dissipation, PC: 1.0W at Ta=25℃; 20W at Tc=25℃; (7)junction temperature, Tj: 150℃; (8)storage temperature range, Tstg: -55 to 150℃.
Features
2SC3074 features: (1)low collector saturation voltage: VCE(sat)=0.4V max; (2)high speed switching time: tstg=1.0μs typ; (3)complementary to 2sa1244.

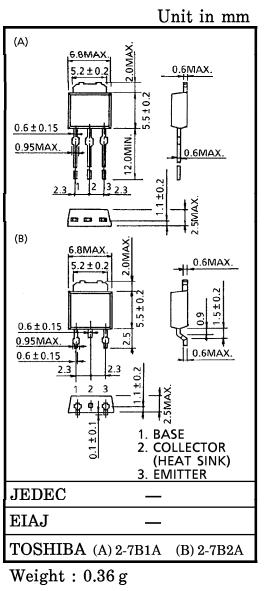

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3074 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
2SC3074-Y(Q) |
Toshiba |
Transistors Bipolar (BJT) NPN 60V 5A Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
|
2SC3074-Y(T6L1,NQ) |
Toshiba |
Transistors Bipolar (BJT) NPN PWR 60V VCBO 50V VCEO 5V VEBO |
Data Sheet |
|
|
||||||||||||
|
2SC3074-O(Q) |
Toshiba |
Transistors Bipolar (BJT) NPN 60V 5A Transistor |
Data Sheet |
Negotiable |
|
||||||||||||
