Product Summary

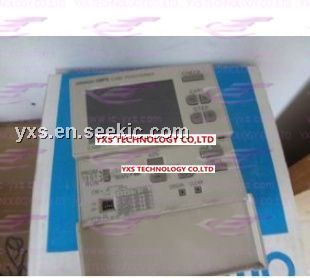

The H8PS-8BF is a cam positioner.
Parametrics
H8PS-8BF absolute maximum ratings: (1)Rated supply voltage: 24 VDC; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Power consumption Approx. 4.5 W at 26.4 VDC for 8-output models; (4)Number of banks: 8 banks (for 16-/32-output Models only); (5)Display method 7-segment, negative transmissive LCD (Main Display: 11 mm (red), Sub-display: 5.5 mm (green)); (6)Ambient operating temperature: -10 to 55°C (with no icing or condensation); (7)Storage temperature: -25 to 65°C (with no icing or condensation); (8)Ambient operating humidity 25% to 85%.
Features
H8PS-8BF features: (1)Compact 8-, 16-, and 32-output Models available that are 1/4- DIN size at 96 x 96 mm; (2)High-speed operation at 1,600 r/min and high-precision settings to 0.5° ensure widespread application; (3)Highly visible display with backlit negative transmissive LCD; (4)Advance angle compensation function to compensate for output delays; (5)Bank function for multi-product production (8 banks). (H8PS-16@/-32@ models.); (6)Speed display and pulse output; (7)Approved standards: UL/CSA and EMC.

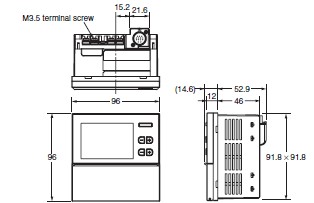

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H8PS-8BF |
Omron Industrial |
Controllers CAM POSITIONER |
Data Sheet |
|
|
||||||||||||
|
H8PS-8BFP |
Omron Industrial |
Controllers CAM POSITIONER |
Data Sheet |
|
|
||||||||||||
