Product Summary

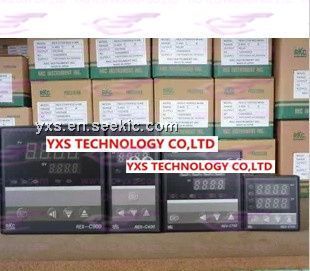

The REX-C100 is a kind of high performance PID controller with easy-to-use. Heat/cool control and two alarms including heater break alarm and loop break alarm are available. It is available in five DIN sizes from 1/16 DIN to 1/4 DIN.
Parametrics
REX-C100 specifications: (1)Supply voltage: a) 85 to 264V AC (Including supply voltage variation) [Rating : 100 to 240V AC] (50/60Hz common); b) 21.6 to 26.4V AC(Including supply voltage variation) [Rating : 24V AC] (50/60Hz common); c) 21.6 to 26.4V DC(Ripple rate 10% p-p or less) [Rating : 24V DC]; (2)Power consumption: Less than 17VA for standard AC type; Less than 7.5VA for 24V AC type; Less than 200mA for 24V DC type; (3)Effect by power failure: A power failure of 20msec or less will not affected the control action. If power failure of more than 20msec occurs, controller will restart; (4)Operating environment: 0 to 50°C [32 to 122°F] , 45 to 85% RH; (5)Memory backup: Backed up by Non-volatile memory.
Features
REX-C100 features: (1)Heat/cool control for extrusion process (except for REX-C100); (2)Heater break alarm ( single or three-phase) and loop break alarm; (3)CE marked, UL approved and CSA certified; (4)Power supply selection among 100 to 240VAC, 24VDC and 24VAC.
Diagrams
