Product Summary

The H7EC-N is a compact economical totalizer.

Parametrics

H7EC-N absolute maximum ratings: (1)Supply voltage Backlight model: 24 VDC (0.3 W max.); (2)Count input High (logic)level: 4.5 to 30 VDC; (3)Max. counting speed: 30 Hz or 1 KHz; (4)Ambient temperature Operating: -10°C to 55°C, Storage: -25°C to 65°C.

Features

H7EC-N features: (1)Large display with 8.6-mm character height; (2)Includes new models with backlight for improved visibility in dimly lit places; (3)Black and light-gray cases now available; (4)PNP/NPN universal DC voltage input types now available; (5)Battery is replaceable for Totalizer reuse and conservation of the environment; (6)Key-protect switch to prevent faulty reset key operation; (7)Dual operation mode; (8)Front face compatible with NEMA4/IP66; (9)Short body, all models have a depth of 48.5 mm; (10)Finger protection terminal block conforms to VDE0106, Part100; (11)Conforms to UL, CSA, and CE marking; (12)Conforms to EMC standards and EN61326, thus allowing use in residential, commercial and light- and heavy-industry environments; (13)Six-language instruction manual provided; (14)PCB-mounting models available (Requires 3-V power supply.).

Diagrams

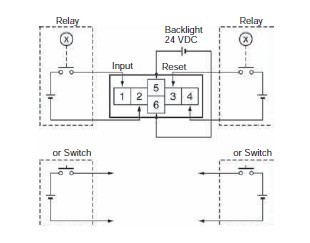

H7EC-N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H7EC-N
H7EC-N
Omron Industrial
Tachometers & Counters TOTALISER 7 DIGIT MAX SCAN 20Hz
Data Sheet
0-1: $49.15
1-5: $43.91
5-10: $40.42
10-25: $34.39
