Product Summary

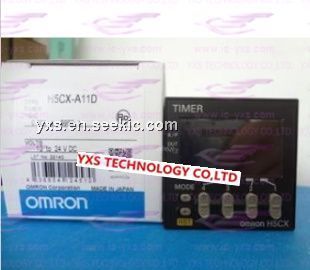

The H5CX-A11D is a DIN 48 × 48 mm Multifunction Digital Timer with Bright, Easy-to-view, Negative Transmissive LCD.
Parametrics
H5CX-A11D absolute maximum ratings: (1)Supply voltage: 12 to 24 VDC/24 VAC 50/60 Hz; (2)Minimum power-opening time: 0.5 s; (3)Reset voltage: 10% max. of rated supply voltage; (4)Sensor waiting time: 250 ms max. (Control output is turned OFF and no input is accepted during sensor waiting time.); (5)One-shot output time: 0.01 to 99.99 s; (6)Ambient temperature: Operating -10 to 55℃ (-10 to 50℃ if timers are mounted side by side) (with no icing or condensation), Storage: -25 to 65℃ (with no icing or condensation); (7)Ambient humidity: 25% to 85%.
Features
H5CX-A11D features: (1)Programmable PV color to visually alert when output status changes (screw terminal block models); (2)Intuitive setting enabled using DIP switch and ergonomic up/down digit keys; (3)Twin timer in one body to meet a broader range of cyclic control application requirements as well as ON/OFF duty adjustable flicker mode; (4)PNP/NPN switchable DC-voltage input; (5)Meet a variety of mounting requirements: Screw terminal block models, and pin-style terminal models; (6)Six-language instruction manual.

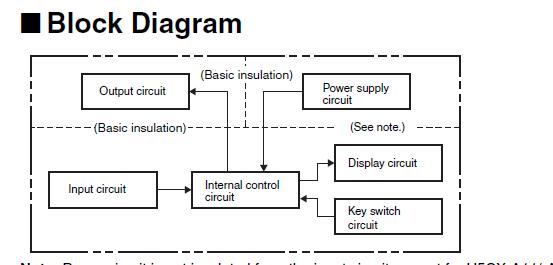

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 H5CX-A11D AC24/DC12-24 |
|
TIMER DGTL PRESET SPDT 11P |
Data Sheet |
Negotiable |
|
||||
 |
H5CX-A11D-AC24/DC12-24 |
Omron Industrial |
Stopwatches & Timers 11-PIN AC24/DC12-24 0.001S-9999HRS |
Data Sheet |
Negotiable |
|
||||
|
H5CX-A11D-N DC12-24/AC24 |
Omron Electronics |
Stopwatches & Timers 11-PIN, RELAY OUT, Multi-Fnctn |
Data Sheet |
Negotiable |
|
||||
