Product Summary
The E5ZN-SDL is a modular temperature controller.
Parametrics
E5ZN-SDL absolute maximum ratings: (1)Power supply voltage: 24 VDC; (2)Allowable voltage range: 85% to 110% of the rated power supply voltage; (3)Power consumption: Approx. 3 W; (4)Number of input and control points: Input points: 2, Control points: 2; (5)Setting method: Via communications or using the Setting Display Unit (E5ZN-SDL); (6)Control method: 2-PID or ON/OFF control; (7)Ambient operating humidity: 25% to 85%; (8)Storage temperature: -25 to 65°C (with no icing or condensation).
Features
E5ZN-SDL features: (1)Two channels of temperature control available despite width of only 22.5 mm; (2)The Temperature Controller itself can be replaced without changing terminal wiring; (3)Use in combination with a compact Setting Display Unit to reduce communications programming requirements; (4)Front-panel LED indicators for easy operation monitoring; (5)Power supply and communications wiring not required between Units when mounted side-by-side; (6)CompoWay/F communications protocol supported; (7)UL, CSA, and CE Marking compliance.

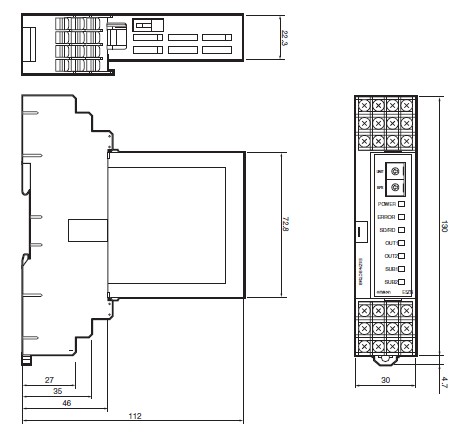

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E5ZN-SDL |
Omron Industrial |
Controllers DIN RAIL TC DISPLAY UNIT |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
E5ZN-2CN03P-309 24VDC |
Omron Industrial |
Controllers GTC Platnm Input Ana log Outpt |
Data Sheet |
Negotiable |
|
||||||||||||
|
E5ZN-2CN03TC-309 24VDC |
Omron Industrial |
Controllers GTC Thermo Input Ana log Outpt |
Data Sheet |
Negotiable |
|
||||||||||||
|
E5ZN-2CNF03P-FLK DC24 |
|
CONTRLR TEMP MODULAR RS-485 NPN |
Data Sheet |
|
|
||||||||||||
|
E5ZN-2CNF03TC-FLK DC24 |
|
CONTRLR TEMP MODULAR RS-485 NPN |
Data Sheet |
|
|
||||||||||||
|
E5ZN-2CP03P-309 24VDC |
Omron Industrial |
Controllers GTC Platnm Input Ana log Outpt |
Data Sheet |
Negotiable |
|
||||||||||||
|
E5ZN-2CP03TC-309 24VDC |
Omron Industrial |
Controllers GTC Thermo Input Ana log Outpt |
Data Sheet |
Negotiable |
|
||||||||||||
