Product Summary
The E5CN-R2HBT is a New 48 x 48-mm Basic Temperature Controller with Enhanced Functions and Performance. It is Improved Indication Accuracy and Preventive Maintenance Function.
Parametrics
E5CN-R2HBT absolute maximum ratings: (1)Power supply voltage: 100 to 240 VAC, 50/60 Hz; (2)Operating voltage range 85% to 110% of rated supply voltage; (3)Power consumption: 7.5 VA (max.); (4)Input impedance: Current input 150 Ω max., Voltage input 1 MΩ min.; (5)External power supply for ES1B: 12 VDC ±10%, 20 mA; (6)Ambient operating temperature: -10 to 55℃ (with no condensation or icing), for 3-year warranty: -10 to 50℃; (7)Ambient operating humidity: 25% to 85%; (8)Storage temperature: -25 to 65℃.
Features
E5CN-R2HBT features: (1)Indication Accuracy Thermocouple input: ±0.3% of PV (previous models: ±0.5%); (2)Indication Accuracy Pt input: ±0.2% of PV (previous models: ±0.5%); (3)Indication Accuracy Analog input: ±0.2% FS (previous models: ±0.5%); (4)New E5CN-U Models (Plug-in Models) with analog inputs and current outputs; (5)A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV; (6)Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter.

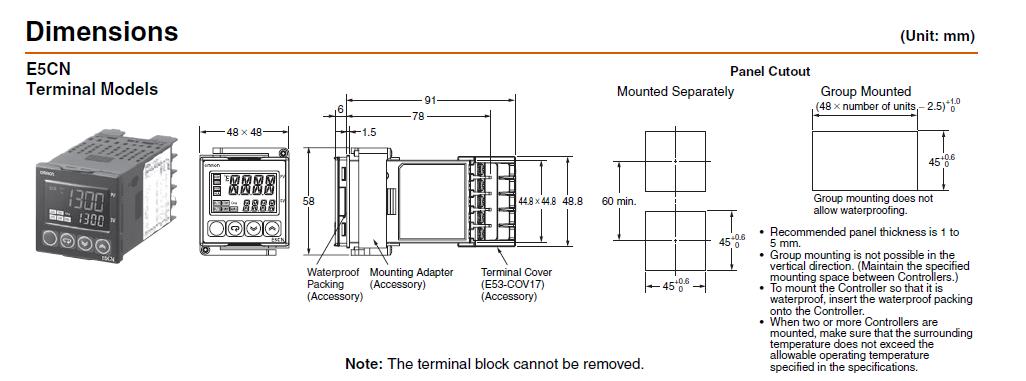

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E5CN-R2HBT AC100-240 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
E5CN-C1LU AC100-240 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||||||||
|
E5CN-C1TDU AC/DC24 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||||||||
|
E5CN-C1TU AC100-240 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||||||||
|
E5CN-C2LU AC100-240 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||||||||
|
E5CN-C2ML-500 AC100-240 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||||||||
|
E5CN-C2MLD-500 AC/DC24 |
Omron Industrial |
Controllers Analog Input 1/16 Di n TC New08 |
Data Sheet |
|
|
||||||||||||
