Product Summary

The E5CST-R1KJ is a basic-type digital temperature controller.

Parametrics

E5CST-R1KJ absolute maximum ratings: (1)Power supply voltage: 5 VDC; (2)Current consumption: 70 mA; (3)Ambient operating temperature: 0 to 55°C (with no condensation or icing); (4)Ambient operating humidity: 10% to 80%; (5)Storage temperature: -20 to 60°C; (6)Vibration resistance: 50 Hz, 98 m/s2.

Features

E5CST-R1KJ features: (1)Indication Accuracy; (2)New E5CN-U Models (Plug-in Models)with analog inputs and current outputs; (3)A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature Controller (auto/manual, RUN/STOP, and alarms)and the PV or SV; (4)Preventive maintenance for relays.

Diagrams

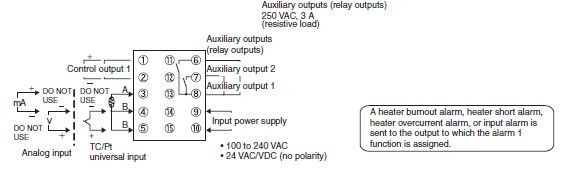

E5CST-R1KJ pin connection
