Product Summary

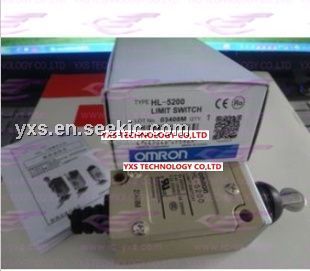

The HL5200 is a kind of General-purpose Limit Switch.

Parametrics

HL5200 specifications: (1)Degree of protection: IP65; (2)Operating speed: 5 mm/s to 0.5 m/s; (3)Insulation resistance: 100 MΩ min. (at 500 VDC); (4)Contact resistance: 25 mΩ max. (initial value); (5)Rated frequency: 50/60 Hz; (6)Ambient operating temperature: -5°C to +65°C (with no icing).

Features

HL5200 features: (1)The Head, Box, and Cover mate with ridged surfaces to maintain strength; (2)A unique Head structure provides a large OT for smooth operation; (3)Easy-to-wire conduit opening design; (4)Ideal for application in printing machines, forming machines, and light machines (High Switches with high sealing characteristics, such as WL or D4C Switches, in locations subject to oil, water, or precipitation); (5)Models with grounding terminals conform to the CE marking; (6)Approved by CCC (Chinese standard).

Diagrams

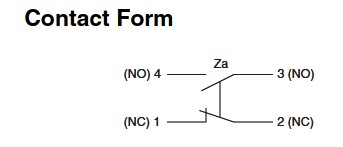

HL5200 circuit diagram
