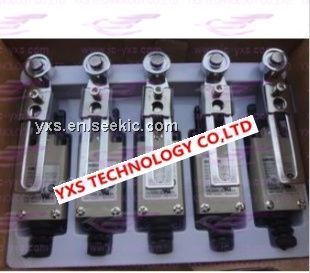

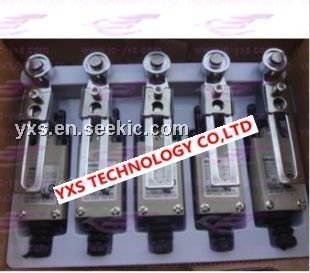

The D4V-8108SZ is a Small Limit Switch, which is the Compact Vertical Model Sized for Asian Standards.
Parametrics
D4V-8108SZ absolute maximum ratings: (1)Operating speed: 5 mm to 0.5 m/s; (2)Operating frequency: Mechanical 120 operations/min, Electrical 30 operations/min; (3)Insulation resistance: 100 MΩ min. (at 500 VDC); (4)Contact resistance: 25 mΩ max. (initial value); (5)Between terminals of the same polarity: 1,000 VAC, 50/60 Hz for 1 min; (6)Between current-carrying metal parts and ground: 1,500 VAC, 50/60 Hz for 1 min; (7)Conditional short-circuit current: 100 A (EN 60947-5-1); (8)Rated open thermal current (lth): 5 A (EN 60947-5-1); (9)Rated frequency: 50/60 Hz; (10)Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude; (11)Shock resistance: Destruction 1,000 m/s2 (free position) min., Malfunction 300 m/s2 (operation limit position) min.; (12)Ambient operating temperature range: -20℃ to 60℃ (with no icing); (13)Ambient operating humidity range: 90% max.; (14)Weight: Approx. 130 to 190 g.
Features
D4V-8108SZ features: (1)Compact new design approximately 1/3 the size of OMRON vertical Limit Switches; (2)Structure enables the terminal section to be fully opened for easy wiring; (3)RoHS complaint; (4)Degree of protection: IP65.
Diagrams
