Product Summary
The TM400HA-H is a medium power general use insulated type module. The applications of the TM400HA-H include DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, Light dimmers.
Parametrics
TM400HA-H absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 800V; (2)Non-repetitive peak reverse voltage, VRSM: 960V; (3)DC reverse voltage, VR (DC): 640V; (4)Repetitive peak off-state voltage, VDRM: 800V; (5)Non-repetitive peak off-state voltage, VDSM: 960V; (6)DC off-state voltage, VD (DC): 640V; (7)RMS on-state current, IT (RMS): 620A; (8)Average on-state current, IT (AV): 400A; (9)Surge (non-repetitive) on-state current, ITSM: 8000A.
Features
TM400HA-H features: (1)IC Collector current: 150A; (2)VCEX Collector-emitter voltage: 1000V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized, Yellow Card No. E80276 (N), File No. E80271.

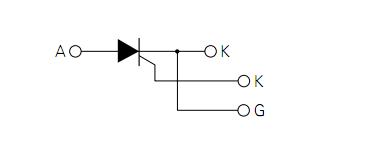

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
TM400HA-H |
Other |
Data Sheet |
Negotiable |
|
||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
TM400CZ-H |
Other |
Data Sheet |
Negotiable |
|
||||||||
TM400DZ-24 |
SCR PHSE CTRL DL MOD 1200V 400A |
Data Sheet |
|
|
||||||||
TM400DZ-2H |
SCR PHSE CTRL DL MOD 1600V 400A |
Data Sheet |
|
|
||||||||
TM400DZ-H |
SCR PHSE CTRL DL MOD 800V 400A |
Data Sheet |
|
|
||||||||
TM400DZ-M |
Other |
Data Sheet |
Negotiable |
|
||||||||
TM400HA-24 |
Other |
Data Sheet |
Negotiable |
|
