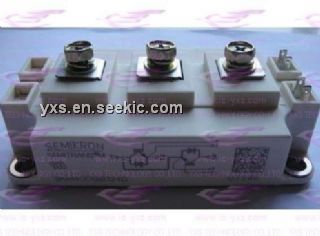

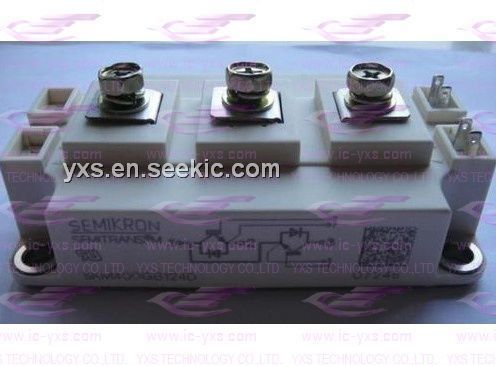

Product Summary

The SKM400GB124D is a low loss IGBT module. The applications of it include: switching(not for lineal use), inverter drivers, UPS.

Parametrics

SKM400GB124D absolute maximim ratings: (1)VCES: 1200V; (2)On the condition of Tc = 25(80) ℃, IC: 570(400)A; (3)On the condition of tp=1ms, ICRM: 600A; (4)VGES: ±20V; (5)On the condition of TOPERATION ≤ Tstg, Tvj(Tstg): -40~+150(125)℃; (6)On the condition of AC, 1min, Visol: 2500V.

Features

SKM400GB124D features: (1)MOS input(voltage controlled); (2)N channel, homogeneous Si-structure(NPT-Nonpunch-through IGBT); (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 × Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DBC direct copper bonding technology without hard mould; (9)Large clearance(12mm) and creepage distances(20mm).

Diagrams

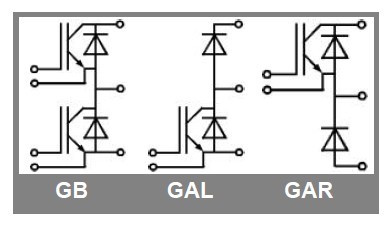

SKM400GB124D block diagram
