Product Summary

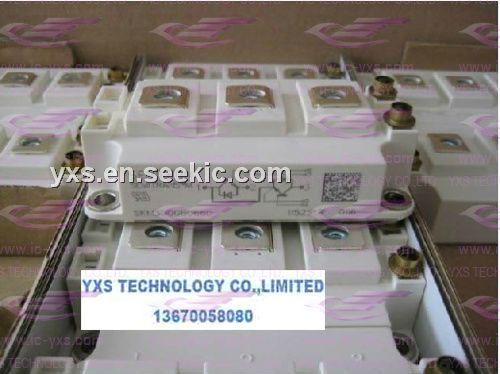

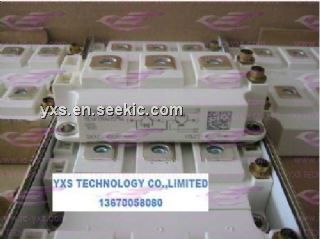

The SKM300GB066D is a trench IGBT Module, which is applied in AC inverter drives, UPS, electronic welders and so on.
Parametrics
SKM300GB066D absolute maximum ratings: (1)VCES: 600V at Tj=25℃; (2)IC: 390A at Tj=175℃, Tc=25℃; 300A at Tc=80℃; (3)ICRM: 600A at ICRM=2× Icnom; (4)VGES: ±20V; (5)tpsc: 6us at VCC=360V; VGE ≤15V; Tj=150℃, Vces<600V; (6)IF: 350A at Tj=175℃, Tc=25℃; 250A at Tc=80℃; (7)IFRM: 600A at IFRM=2×IFnom; (8)IFSM: 1760A at tp=10ms; sin,Tj=175℃; (9)It(rms): 500A; (10)Tvj: -40 to +175℃; (11)Tstg: -40 to +125℃; (12)Visol: 4000V at AC,1min.
Features
SKM300GB066D features: (1)homogeneous Si; (2)Trench=Trenchgate technology; (3)VCE(sat) with positive temperature coefficient; (4)high short circuit capability,self limiting to 6 × IC.
Diagrams
