Product Summary

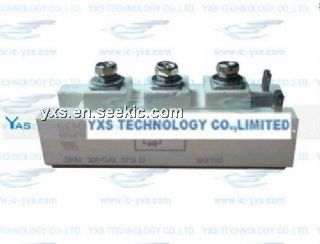

The SKM300GAL173D is a SPT IGBT module. The applications of the SKM300GAL173D include AC inverter drives; UPS; Electronic welders at fsw up to 20kHz.
Parametrics
SKM300GAL173D absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 370(265)A; (3)ICRM, tp=1ms: 400A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN: 4000V.
Features
SKM300GAL173D features: (1)Homogeneous Si; (2)SPT=Soft punch through technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 x Ic.

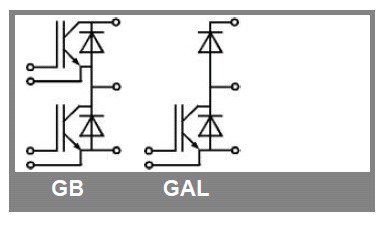

Diagrams
