Product Summary

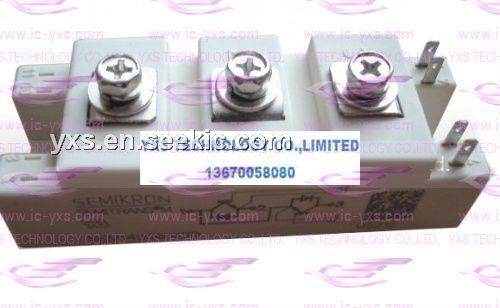

The SKM145GB123D is an IGBT module. The typical application is switching (not for linear use).

Parametrics

SKM145GB123D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 145A at Tc=25℃; 110A at Tc=80℃; (3)ICRM: 200A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 2500V.

Features

SKM145GB123D features: (1)MOS input; (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6Icnom; (6)latch-up free; (7)fast and soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding; (9)large clearance and creepage distances.

Diagrams

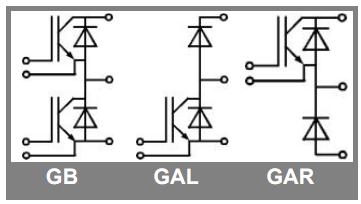

SKM145GB123D block diagram
