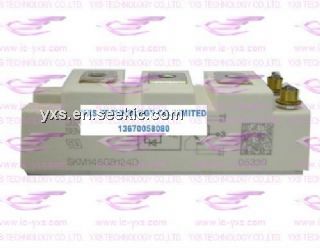

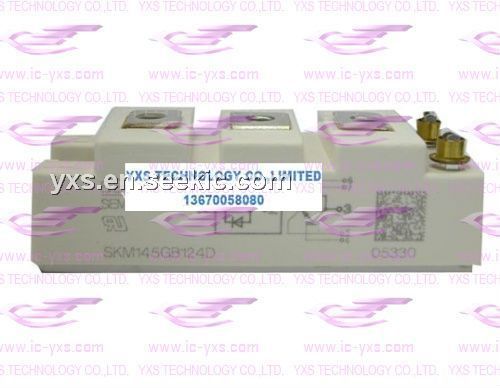

Product Summary

The SKM145GAL124DN is a Low Loss IGBT Module. The applications of the SKM145GAL124DN include switching(not for liner use), switched mode power supplies, DC servo and robot supplies, inverters, DC choppers, AC mootr speed control, UPS, general power switching applications.

Parametrics

SKM145GAL124DN absolute maximum ratings: (1)Tj= 25℃, VCES: 1200V; (2)Tj= 150℃, Tcase= 25℃, Ic: 190A; Tcase= 80℃, Ic: 130A; (3)ICRM= 2×1Cnom, ICRM: 200A; (4)VGES: ±20V; (5)VCC= 600V; VGE≤ 20V; Tj= 125℃, VCES＜1200V, tpsc: 10μs.

Features

SKM145GAL124DN features: (1)N channel, Homogeneous Silicon structure (NPT-Non punch-through IGBT); (2)High short circuit capability, self limiting to 6×1cnom; (3)Fast & soft inverse CAL diodes; (4)Without hard mould; (5)Large clearance(10mm) and creepage distances(20mm).

Diagrams

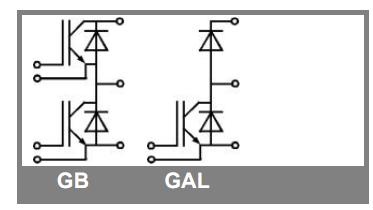

SKM145GAL124DN block diagram
