Product Summary
The SKIM500GD128DM is an IGBT Module. The applications of the SKIM500GD128DM include AC inverter drives, uninterruptable power supplies.
Parametrics
SKIM500GD128DM absolute maximum ratings: (1)VCES: 1200V; (2)IC: 425A; (3)ICRM: 600A; (4)VGES: ±20V; (5)TJ: -40 to 150℃; (6)Tcop: 125℃; (7)Visol: 2500V; (8)IF: 450A; (9)IFRM: 600A; (10)IFSM: 3300A.
Features
SKIM500GD128DM features: (1)Homogeneous Si; (2)SPT=soft punch through technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6×IC; (5)Isolated by AI2O3 DCB ceramic plate; (6)Pressure contact technology for thermal contacts; (7)Spring contact system to attach driver PCB to the control terminals; (8)Integrated temperature sensore.

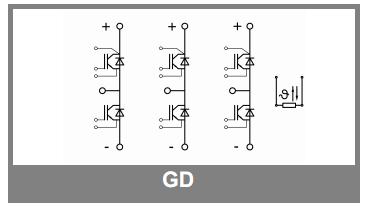

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() SKiM500GD128DM |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
![]() |
![]() SKiM500GD128DM |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
