Product Summary
The SKDH146-16 is a 3-Phase Bridge Rectifier. The applications of the SKDH146-16 include DC drivers, controlled filed rectifiers for DC motors, Controlled battery changer.
Parametrics
SKDH146-16 absolute maximum ratings: (1)ID: 140A; (2)IFSM/ITSM: 1250A; (3)I2T: 7800A2s; (4)VCES/VGES: 1200/20V; (5)IC: 125A; (6)ICM: 250A; (7)VRRM: 1200V; (8)IF: 130A; (9)IFM: 240A.
Features
SKDH146-16 features: (1)Compact design; (2)Two screws mounting; (3)Heat transfer and isolation through direct copper bonded aluminium oxide ceramic; (4)High surge current; (5)Up to 1600V reverse voltage; (6)UL recognized, file no.E 63532.

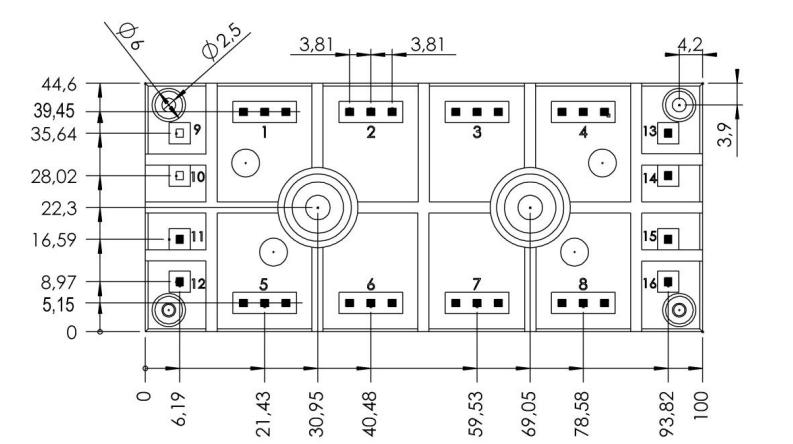

Diagrams
