Product Summary
The PP18017HS is a thyristor surge suppressor. The applications of the PP18017HS include T1/E1 Trunk & Line Card, SLIC Line Card, DBX Branch Exchange Switches, FCC Part 68 Customer Premise Equipment, Line Interface Modem, xDSL Architecture Interface, ISDN Architecture Interface.
Parametrics
PP18017HS absolute maximum ratings: (1)Surge Current - 50/60 Hz, ITSM: 60A; (2)Junction Temperature, TJ: -40 to 150℃; (3)Storage Temperature, TSTG: -40 to 150℃; (4)Thermal Resistance(Junction) - SA & SB Series, RQJC: 28℃/WATT; (5)Thermal Resistance(Junction) - SC Series, RQJC: 26℃/WATT; (6)Thermal Resistance(Ambient) - SA & SB Series, RQJA: 90℃/WATT; (7)Thermal Resistance(Ambient) - SC Series, RQJA: 85℃/WATT.
Features
PP18017HS features: (1)Complies with: FCC Part 68, UL 1459, Bellcore 1089, ITU-K.20 & K.21; (2)UL File Recognition # E208219; (3)Peak Off-State Voltage from 25 to 300 Volts; (4)Surge Current Capability (See Table 1); (5)ESD Protection > 40 kilovolts; (6)Low Capacitance for T1/E1 Trunk & Line Card Applications; (7)Bidirectional Configurations; (8)RoHS Compliant in Lead-Free Versions.

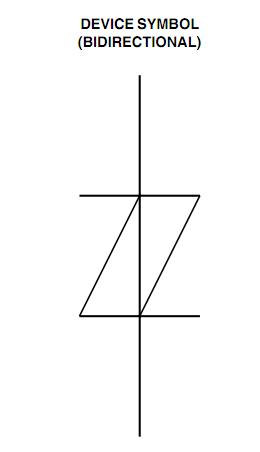

Diagrams
