Product Summary
The MG50G2CL3 is a Darlington Half Bridge Power Module.
Parametrics
MG50G2CL3 absolute maximum ratings: (1)Isolated Case (Y/N): Yes; (2)Circuits Per Package: 1; (3)V(BR)CEO (V): 450; (4)V(BR)CBO (V): 600; (5)I(C) Max. (A): 50; (6)Absolute Max. Power Diss. (W): 300; (7)Maximum Operating Temp (℃): 150; (8)h(FE) Min. Current gain.: 100; (9)@I(C) (A) (Test Condition): 50; (10)@VCE (test): 5.0V(CE)sat Max. (V): 2.0; (11)@I(C) (A) (Test Condition): 50; (12)@I(B) (A) (Test Condition): 1.0; (13)t(f) Max. (s) Fall time.: 2.0u.

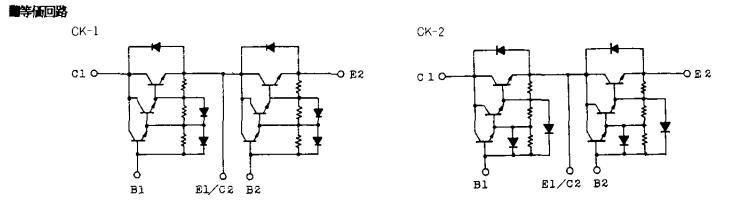

Diagrams
