Product Summary

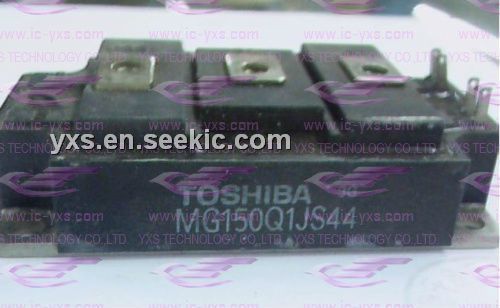

The MG150Q1JS44 is a IGBT power module. The applications of the MG150Q1JS44 include high power switching applications, chopper applications.
Parametrics
MG150Q1JS44 absolute maximum ratings: (1)collector-emitter voltage: 1200 V; (2)gate-emitter voltage: ±20 V; (3)collector current: DC 150 A, 1ms 300 A; (4)forward current: DC 150 A, 1ms 300 A; (5)collector power dissipation: 1100 W; (6)junction temperature: 150℃; (7)storage temperature range: -40 to 125℃; (8)isolation voltage: 2500 (AC miniute) V.
Features
MG150Q1JS44 features: (1)high input impedance; (2)high speed: tf=0.5 μs max, trr=0.5 μs max; (3)low saturation voltage: VCE(sat)=4.0 V max; (4)enhancement-mode; (5)the electrodes are isolated from case.

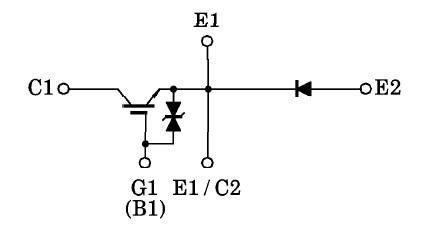

Diagrams
