Product Summary

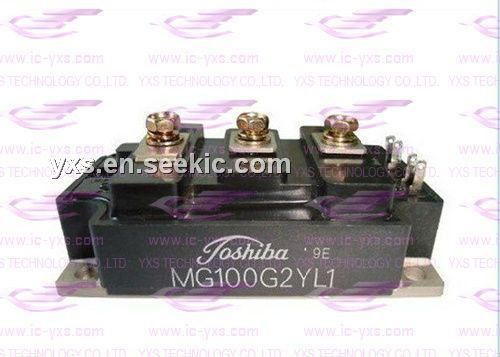

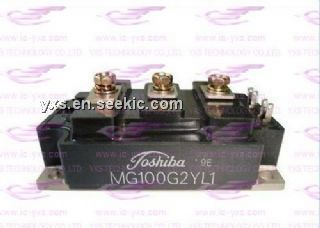

The MG100G2YL1 is a westcode transisitor module designed for use in various types of motor control and other high power switching applicantions and consist of insulated type darlington transistor. The electrodes of the MG100G2YL1 are fully isolated from heat sink. Single ended electrode construction is used to greatly simplify mounting. The MG100G2YL1 is available with current capability up 400 A and voltage rating up to 1400 V.

Parametrics

MG100G2YL1 absolute maximum ratings: (1)VCBO: 1200 V; (2)VCEX: 1200 V; (3)VCEO: 900 V; (4)VEBO: 7 V; (5)Ic(DC): 100 A; (6)ICP(A): 200 1msec; (7)IF(DC): 100 A; (8)IFM(A): 200 1msec; (9)IB: 10 A; (10)Pc(W): 700 at Tc=25℃; (11)hFE min: 100.

Features

MG100G2YL1 features: (1)electrodes are isolated from the heat sink (2500V AC); (2)high DC current gain (hFE) (80 or 100 min); (3)low saturation voltage (2 or 2.5 V max); (4)wide safe operating area.

Diagrams

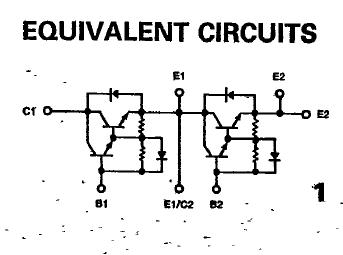

MG100G2YL1 block diagram
