Product Summary

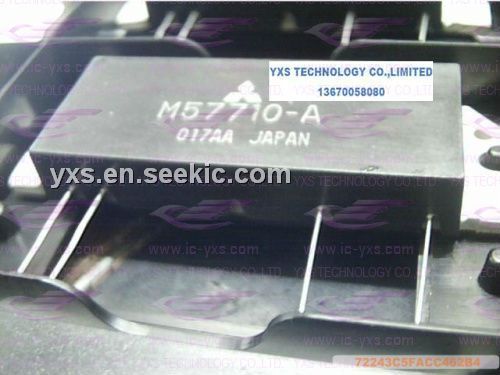

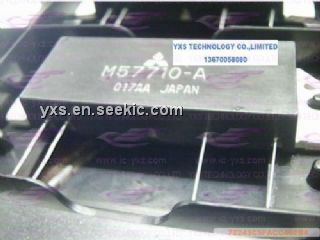

The M57710-A is a FM mobile radio.

Parametrics

M57710-A absolute maximum ratings: (1)Supply voltage, VCC: 17V; (2)Total current, ICC: 7A; (3)Input power, Pin: 0.4W; (4)Output power, Po: 40W; (5)Operation case temperature, TC: -30 to 110℃; (6)Storage temperature, Tstg: -40 to 110℃.

Features

M57710-A features: (1)Frequency range: 156 to 160MHz; (2)Output power: 30W; (3)Total efficiency: 45%; (4)2nd. harmonic: -25dBc; (5)3ed. harmonic: -30dBc; (6)Input VSWR: 2.8.

Diagrams

M57710-A block diagram
