Product Summary
The IXSN52N60AU1 is an IGBT module. The applications of the IXSN52N60AU1 include AC motor speed control, DC servo and robot drives, DC choppers, Uninterruptible power supplies (UPS), Switch-mode and resonant-mode power supplies.
Parametrics
IXSN52N60AU1 absolute maximum ratings: (1)VCES, TJ= 25℃ to 150℃: 600 V; (2)VCGR, TJ= 25℃ to 150℃; RGE = 1 MΩ: 600 A; (3)VGES, Continuous: ±20 V; (4)VGEM, Transient: ±30 V; (5)IC25, TC = 25℃: 80A; (6)IC90, TC = 90℃: 40A; (7)ICM, TC = 25℃, 1 ms: 160 A.
Features
IXSN52N60AU1 features: (1)International standard package miniBLOC; (2)Aluminium-nitride isolation, high power dissipation; (3)Isolation voltage 3000 V~; (4)Low VCE(sat), for minimum on-state conduction losses; (5)Fast Recovery Epitaxial Diode, short trr and IRM; (6)Low collector-to-case capacitance(< 50 pF) - reducesd RFI; (7)Low package inductance (< 10 nH)- easy to drive and to protect.

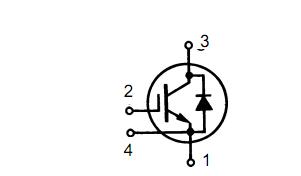

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXSN52N60AU1 |
Ixys |
IGBT Transistors 80 Amps 600V 3.0 Rds |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
IXSN 55N120A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
IXSN35N100U1 |
Ixys |
IGBT Transistors 35 Amps 1000V |
Data Sheet |
Negotiable |
|
||||
|
IXSN35N120AU1 |
Ixys |
IGBT Transistors 35 Amps 1200V 4 Rds |
Data Sheet |
Negotiable |
|
||||
|
IXSN50N60BD2 |
Ixys |
IGBT Transistors 75 Amps 600V 2.5 Rds |
Data Sheet |
Negotiable |
|
||||
|
IXSN50N60BD3 |
Ixys |
IGBT Transistors 75 Amps 600V 2.5 Rds |
Data Sheet |
Negotiable |
|
||||
|
IXSN52N60AU1 |
Ixys |
IGBT Transistors 80 Amps 600V 3.0 Rds |
Data Sheet |
Negotiable |
|
||||
