Product Summary

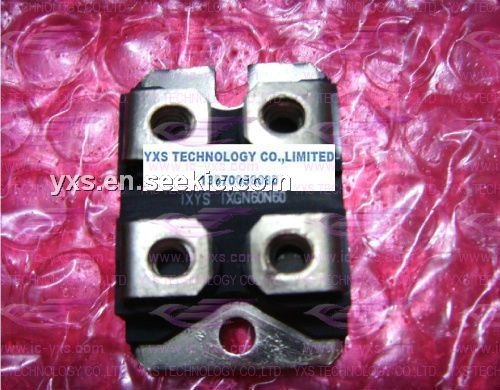

The IXGN60N60 is an Ultra-Low VCE(sat) IGBT module. The applications of the IXGN60N60 include AC motor speed control, DC servo and robot drives, DC choppers, Uninterruptible power supplies (UPS), Switch-mode and resonant-mode power supplies.
Parametrics
IXGN60N60 absolute maximum ratings: (1)VCES, TJ= 25℃ to 150℃: 600 V; (2)VCGR, TJ= 25℃ to 150℃; RGE = 1 MΩ: 600 A; (3)VGES, Continuous: ±20 V; (4)VGEM, Transient: ±30 V; (5)IC25, TC = 25℃: 100A; (6)IC90, TC = 90℃: 60A; (7)ICM, TC = 25℃, 1 ms: 200 A.
Features
IXGN60N60 features: (1)International standard package SOT-227B; (2)Aluminium nitride isolation - high power dissipation; (3)Isolation voltage 3000 V~; (4)Very high current, fast switching IGBT; (5)Low VCE(sat) for minimum on-state conduction losses; (6)MOS Gate turn-on drive simplicity; (7)Low collector-to-case capacitance (< 50 pF); (8)Low package inductance (< 5 nH)- easy to drive and to protect.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXGN60N60 |
Ixys |
IGBT Transistors ULTRA LOW VCE 600V 100A |
Data Sheet |
Negotiable |
|
||||
 |
IXGN60N60C2 |
Ixys |
IGBT Transistors 60 Amps 600V 1.7 V Rds |
Data Sheet |
Negotiable |
|
||||
|
IXGN60N60C2D1 |
Ixys |
IGBT Transistors 60 Amps 600V 1.7 V Rds |
Data Sheet |
Negotiable |
|
||||
