Product Summary
The FZ2400R17KF6C_B2 is an IGBT module.
Parametrics
FZ2400R17KF6C_B2 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1700 V; (2)DC-collector current, TC = 25℃, IC: 2400 A; (3)repetitive peak collector current, tP = 1 ms, TC = 80℃, ICRM: 4800 A; (4)total power dissipation, TC=25℃, Transistor Ptot: 12,5kW; (5)gate-emitter peak voltage, VGES: +/- 20V.
Features
FZ2400R17KF6C_B2 features: (1)collector-emitter saturation voltage: - 2,4 2,9 V; (2)gate threshold voltage VGE(th): 4,5 5,5 6,5 V; (3)input capacitance: 170 -nF; (4)reverse transfer capacitance: -11-nF.

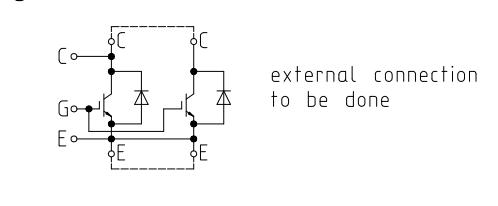

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FZ2400R17KF6C_B2 |
Infineon Technologies |
IGBT Modules N-CH 1.7KV 3.8KA |
Data Sheet |
|
|
||||||
|
FZ2400R17KF6C-B2 |
Infineon Technologies |
IGBT Modules 1700V 2400A SINGLE |
Data Sheet |
Negotiable |
|
||||||
