Product Summary
The FZ1600R17HP4-B21 is an IHM-B module. The applications of the FZ1600R17HP4-B21 include resonant inverter applications, high power converters, traction drives, wind turbines.
Parametrics
FZ1600R17HP4-B21 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1700 V; (2)DC-collector current, TC = 25℃, IC: 1600 A; (3)repetitive peak collector current, tP = 1 ms, TC = 80℃, ICRM: 3200 A; (4)total power dissipation, TC=25℃, Transistor Ptot: 11.0 kW; (5)gate-emitter peak voltage, VGES: +/- 20V.
Features
FZ1600R17HP4-B21 features: (1)Extended operation temperature Tvjop; (2)Enlarged diode for regenerative operation; (3)Low VCEsat; (4)4kV AC 1min insulation; (5)AlSiC base plate for increased thermal cycling capability; (6)Package with CTI>400; (7)High creepage and clearance distances; (8)High power and thermal cycling capability; (9)High power density; (10)IHM B housing.

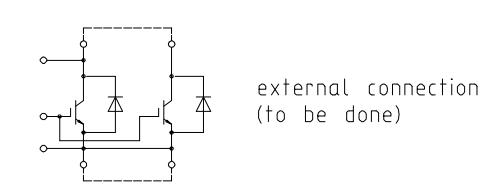

Diagrams
