Product Summary

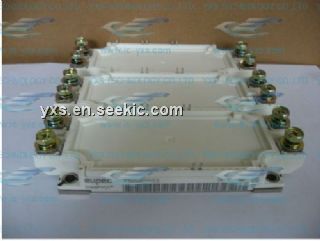

The FS450R17KE3 is an IGBT module.

Parametrics

FS450R17KE3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1700V; (2)DC-collector current, IC: 605A; (3)repetitive peak collector current, ICRM: 900A; (4)total power dissipation, Ptot: 2250W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FS450R17KE3 features: (1)repetitive peak reverse voltage, VRRM: 1700V; (2)DC forward current, IF: 450A; (3)repetitive peak forward current, IFRM: 900A; (4)I2t value, I2t: 2000A2s.

Diagrams

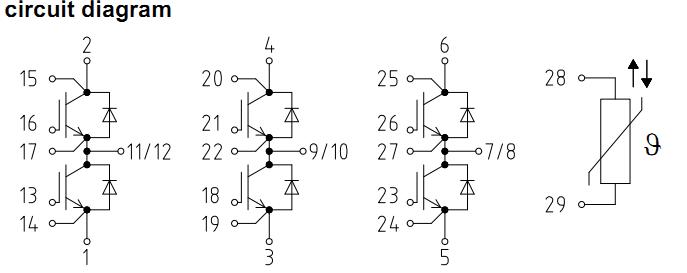

FS450R17KE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS450R17KE3
FS450R17KE3
Infineon Technologies
IGBT Modules 1700V 450A 3-PHASE
Data Sheet
0-2: $649.91
2-10: $584.92
