Product Summary

The FF650R17IE4 is a PrimePACK module and NTC. The applications of the FF650R17IE4 include 3-level-applications, auxiliary inverters, high power converters, motor drives, traction drives, wind turbines.

Parametrics

FF650R17IE4 absolute maximum ratings: (1)collector emitter voltage: 1700V; (2)DC-collector current: 650A; (3)repetitive peak collector current: 1300A; (4)total power dissipation: 41500W; (5)gate-emitter peak voltage: ±20V.

Features

FF650R17IE4 features: (1)Extended operation temperature TVJop; (2)High DC stability; (3)High current density; (4)Low switching losses; (5)Tvjop=150℃; (6)Enlarged diode for regenerative operation; (7)Low VCEsat.

Diagrams

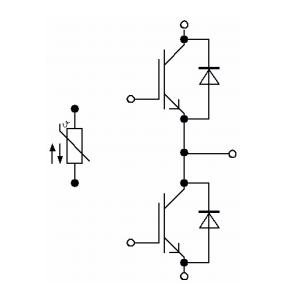

FF650R17IE4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF650R17IE4
FF650R17IE4

Infineon Technologies

IGBT Modules N-CH 1.7KV 930A

Data Sheet

0-2: $411.89
2-10: $370.68
FF650R17IE4D_B2
FF650R17IE4D_B2

Infineon Technologies

IGBT Modules IGBT 1700V 650A

Data Sheet

0-2: $536.40
2-10: $483.60
