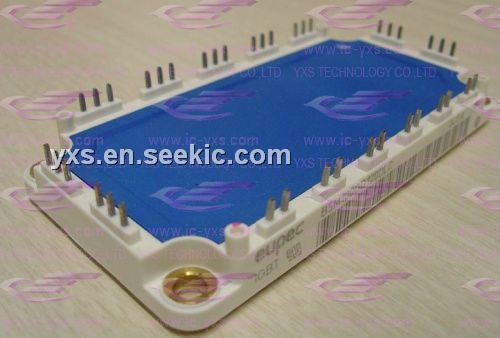

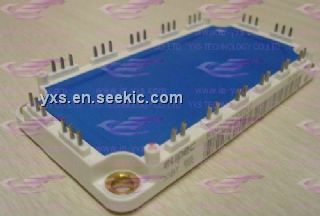

The FF600R16KF4 is an IGBT Power Module.
Parametrics
FF600R16KF4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1600 V; (2)DC-collector current, IC: 600 A; (3)repetitive peak collector current tp=1 ms, ICRM: 1200 A; (4)total power dissipation tC=25℃, Transistor /transistor, Ptot: 3900 W; (5)gate-emitter peak voltage, VGE: ±20 V; (6)DC forward current, IF: 600 A; (7)repetitive peak forw. current tp=1ms, IFRM: 1200 A; (8)insulation test voltage RMS, f=50 Hz, t= 1 min. VISOL: 3,4 kV.
Features
FF600R16KF4 features: (1)collector-emitter saturation voltage iC=600A, vGE=15V, tvj=25℃, VCEsat: 3.5 to 3.9V; iC=600A, vGE=15V, tvj=125℃, VCEsat: 4,6 to 5 V; (2)gate threshold voltage iC=40mA, vCE=vGE, tvj=25℃ vGE(TO): 4,5 to 6,5 V; (3)input capacity fO=1MHz,tvj=25℃,vCE=25V, vGE=0V, Cies: 90 nF; (4)collector-emitter cut-off current vCE=1600V, vGE=0V, tvj=25℃ iCES: 4mA; vCE=1600V, vGE=0V, tvj=125℃, iCES: 40mA; (5)gate leakage current vCE=0V, vGE=20V, tvj=25℃, iGES: 400 nA; (6)gate leakage current vCE=0V, vEG=20V, tvj=25℃ iEGS: 400 nA.
